Introduction To IDS/IPS
Intrusion Detection Systems (IDS) and Intrusion Prevention Systems (IPS) are critical components of a defense-in-depth network security strategy. While both utilize similar detection methods, their primary functions and network placements differ based on how they handle potential threats.
| Feature | Intrusion Detection System (IDS) | Intrusion Prevention System (IPS) |
|---|---|---|
| Function | Passively monitors traffic and sends alerts to a management station. | Actively intervenes and prevents detected threats. |
| Action | Does not stop or block intrusions. | Drops malicious packets, blocks traffic, and resets connections. |
| Placement | Behind the firewall (internal side) to monitor traffic that bypassed the perimeter. | Inline, directly behind the firewall, where it has the authority to block traffic. |
Both systems use two primary methods to balance threat detection and minimize false alarms:
- Identifies known threats using previously established bad patterns and malware signatures.
- Establishes a baseline of “normal” network behavior and triggers actions for any deviations. This is proactive against new threats but is more prone to false positives.
Deployment:
- Network-based: Typically placed behind the firewall to focus on internal traffic and threats that have made it past the first line of defense.
- Host-based (HIDS/HIPS): Can be implemented directly on individual host machines to monitor their specific inbound and outbound traffic.
Updates:
To maintain a strong defense, the systems require ongoing management and integration into broader security monitoring frameworks.
Because the threat landscape is constantly changing, security teams must proactively maintain these systems by:
- Regularly updating threat signatures to catch newly discovered malware.
- Continuously fine-tuning anomaly detection algorithms to ensure accuracy and reduce false positives.
SIEM systems act as the central hub for network security:
- Log Aggregation: They collect logs from IDS, IPS, and various other network devices.
- Event Correlation: By analyzing data from multiple sources, SIEMs can connect the dots between seemingly unrelated events to detect complex, coordinated attacks.
- Unified Visibility: This centralized approach gives security teams a complete picture of the network, enabling faster and more effective incident response.
Suricata
Suricata Fundamentals
Suricata is a highly efficient, open-source network security tool utilized for Intrusion Detection (IDS), Intrusion Prevention (IPS), and Network Security Monitoring (NSM).
- It is a community-led project managed by the non-profit Open Information Security Foundation (OISF).
- It thoroughly inspects all network traffic, including deep dives into individual application-layer transactions, to detect malicious activity.
- Its effectiveness relies on a sophisticated set of rules that guild its analysis and identify potential threats.
- It is exceptionally fast and optimized to run at high speeds on both standard, off-the-shelf hardware and specialized equipment.
Suricata Operation Modes
Suricata operates in four (4) distinct modes:
| Mode | Role / Stance | Action Taken | Key Advantages | Drawbacks |
|---|---|---|---|---|
| Intrusion Detection System (IDS) | Silent Observer | Passively examines traffic and flags potential attacks without intervening. | Augments network visibility and accelerates response times. | Offers no direct protection or active blocking. |
| Intrusion Prevention System (IPS) | Proactive / Inline | Scrutinizes all traffic and blocks attacks before they reach the internal network. | Proactively thwarts threats. | May introduce network latency; risks blocking legitimate traffic if rules aren’t rigorously tested. |
| Intrusion Detection Prevention System (IDPS) | Hybrid | Passively monitors traffic but actively transmits RST (reset) packets against abnormal activities. | Strikes a balance between active protection and maintaining low latency. | Requires careful tuning to ensure RST packets effectively disrupt the correct sessions. |
| Network Security Monitoring (NSM) | Dedicated Logger | Logs all encountered network information without performing active/passive analysis or prevention. | Provides a wealth of historical data for retrospective incident investigations. | Generates a very high volume of data to store and manage. |
Suricata Inputs
Inputs dictate how Suricata ingests network traffic for inspection. They are divided into two main categories: Offline and Live.
| Category | Interface / Method | Description & Limitations |
|---|---|---|
| Offline | PCAP (LibPCAP) | Processes previously captured packet files. Ideal for post-incident investigations and safely testing new rule configurations. |
| Live | LibPCAP | Reads packets directly from network interfaces in real-time. Limitation: Suffers from performance constraints and lacks load-balancing. |
| Live | NFQ (Netfilter Queue) | A Linux-specific inline IPS mode working with IPTables to route packets from the kernel for inspection.Requirement: Needs active “drop rules” to block malicious packets. |
| Live | AF_PACKET | A high-performance, multi-threaded alternative to LibPCAP. Limitation: Incompatible with older Linux distributions and cannot be used inline if the host machine also routes packets. |
Suricata Outputs
Suricata generates various logs, alerts, and network metadata (like DNS requests and network flows). The two most notable formats are:
- EVE (JSON): The most critical output format. It acts as a comprehensive, JSON-formatted log that records alerts, drops, and detailed metadata (HTTP, DNS, TLS, flows). Because it is JSON, it is easily ingested and analyzed by platforms like Logstash.
- Unified2: A legacy, Snort-compatible binary alert format. It is primarily used to integrate with other software that relies on Snort’s ecosystem and can be read using Snort’s
u2spewfootool.
Configuring Suricata & Custom Rules
we can get an overview of all the rule files by listing /etc/suricata/rules/:
1
2
3
4
5
6
7
8
9
10
11
12
$ ls -lah /etc/suricata/rules/
total 27M
drwxr-xr-x 2 root root 4.0K Jun 28 12:10 .
drwxr-xr-x 3 root root 4.0K Jul 4 14:44 ..
-rw-r--r-- 1 root root 31K Jun 27 20:55 3coresec.rules
-rw-r--r-- 1 root root 1.9K Jun 15 05:51 app-layer-events.rules
-rw-r--r-- 1 root root 2.1K Jun 27 20:55 botcc.portgrouped.rules
-rw-r--r-- 1 root root 27K Jun 27 20:55 botcc.rules
-rw-r--r-- 1 root root 109K Jun 27 20:55 ciarmy.rules
-rw-r--r-- 1 root root 12K Jun 27 20:55 compromised.rules
-rw-r--r-- 1 root root 21K Jun 15 05:51 decoder-events.rules
---SNIP---
We can use more (a tool help you view written content in pages) to read these rule:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
$ more /etc/suricata/rules/emerging-malware.rules
# Emerging Threats
#
# This distribution may contain rules under two different licenses.
#
# Rules with sids 1 through 3464, and 100000000 through 100000908 are under the GPLv2.
# A copy of that license is available at http://www.gnu.org/licenses/gpl-2.0.html
#
# Rules with sids 2000000 through 2799999 are from Emerging Threats and are covered under the BSD License
# as follows:
#
#*************************************************************
# Copyright (c) 2003-2022, Emerging Threats
# All rights reserved.
#
# Redistribution and use in source and binary forms, with or without modification, are permitted provided that the
# following conditions are met:
#
# * Redistributions of source code must retain the above copyright notice, this list of conditions and the following
# disclaimer.
# * Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the
# following disclaimer in the documentation and/or other materials provided with the distribution.
# * Neither the name of the nor the names of its contributors may be used to endorse or promote products derived
# from this software without specific prior written permission.
#
# THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS AS IS AND ANY EXPRESS OR IMPLIED WARRANTIES,
# INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
# DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
# SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR
# SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
# WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE
# USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
#
#*************************************************************
#
#
#
#
# This Ruleset is EmergingThreats Open optimized for suricata-5.0-enhanced.
#alert tcp $HOME_NET any -> $EXTERNAL_NET any (msg:"ET MALWARE Psyb0t joining an IRC Channel"; flow:established,to_server; flowbits:isset,is_proto_irc; content:"
JOIN #mipsel"; reference:url,www.adam.com.au/bogaurd/PSYB0T.pdf; reference:url,doc.emergingthreats.net/2009172; classtype:trojan-activity; sid:2009172; rev:2; me
tadata:created_at 2010_07_30, updated_at 2010_07_30;)
alert tcp $HOME_NET any -> $EXTERNAL_NET 25 (msg:"ET MALWARE SC-KeyLog Keylogger Installed - Sending Initial Email Report"; flow:established,to_server; content:"
Installation of SC-KeyLog on host "; nocase; content:"<p>You will receive a log report every "; nocase; reference:url,www.soft-central.net/keylog.php; reference:
url,doc.emergingthreats.net/2002979; classtype:trojan-activity; sid:2002979; rev:4; metadata:created_at 2010_07_30, updated_at 2010_07_30;)
alert tcp $HOME_NET any -> $EXTERNAL_NET 25 (msg:"ET MALWARE SC-KeyLog Keylogger Installed - Sending Log Email Report"; flow:established,to_server; content:"SC-K
eyLog log report"; nocase; content:"See attached file"; nocase; content:".log"; nocase; reference:url,www.soft-central.net/keylog.php; reference:url,doc.emerging
threats.net/2008348; classtype:trojan-activity; sid:2008348; rev:2; metadata:created_at 2010_07_30, updated_at 2010_07_30;)
---SNIP---
Each rule usually involves specific variables, such as $HOME_NET and $EXTERNAL_NET
The rule examines traffic from the IP addresses specified in the $HOME_NET variable heading towards the IP addresses in the $EXTERNAL_NET variable.
1
2
3
4
5
6
$ pwd
/etc/suricata
$ ls
classification.config reference.config suricata.log
eve.json rules **suricata.yaml**
fast.log stats.log threshold.config
These variables can be defined in the suricata.yaml configuration file.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
$ more /etc/suricata/suricata.yaml
%YAML 1.1
---
# Suricata configuration file. In addition to the comments describing all
# options in this file, full documentation can be found at:
# https://suricata.readthedocs.io/en/latest/configuration/suricata-yaml.html
# This configuration file generated by Suricata 6.0.13.
suricata-version: "6.0"
##
## Step 1: Inform Suricata about your network
##
vars:
# more specific is better for alert accuracy and performance
address-groups:
HOME_NET: "[10.0.0.0/8]"
#HOME_NET: "[192.168.0.0/16]"
#HOME_NET: "[10.0.0.0/8]"
#HOME_NET: "[172.16.0.0/12]"
#HOME_NET: "any"
EXTERNAL_NET: "!$HOME_NET"
#EXTERNAL_NET: "any"
HTTP_SERVERS: "$HOME_NET"
SMTP_SERVERS: "$HOME_NET"
SQL_SERVERS: "$HOME_NET"
DNS_SERVERS: "$HOME_NET"
TELNET_SERVERS: "$HOME_NET"
AIM_SERVERS: "$EXTERNAL_NET"
DC_SERVERS: "$HOME_NET"
DNP3_SERVER: "$HOME_NET"
---SNIP---

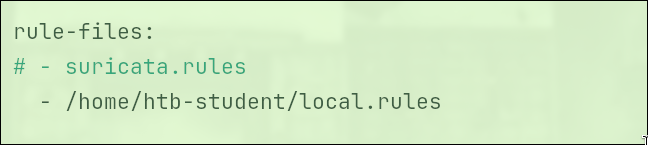

To configure Suricata to load a custom rules file we would use a text editor to edit .yaml file as follow:
1
$ sudo vim /etc/suricata/suricata.yaml
- Add
/home/htb-student/local.rulesto rule-files: section insuricata.yaml - Press the
Esckey - Enter
:wqand then, press theEnterkey
Hands-on With Suricata Inputs
With Suricata inputs, we can experiment with both offline and live input:
#1. With offline input
To read network trafffic, we can use -r <path/to/file> switch
1
2
3
4
5
$ suricata -r /home/htb-student/pcaps/suspicious.pcap
18/6/2026 -- 05:14:55 - <Notice> - This is Suricata version 6.0.13 RELEASE running in USER mode
18/6/2026 -- 05:14:55 - <Notice> - all 3 packet processing threads, 4 management threads initialized, engine started.
18/6/2026 -- 05:14:55 - <Notice> - Signal Received. Stopping engine.
18/6/2026 -- 05:14:55 - <Notice> - Pcap-file module read 1 files, 5172 packets, 3941260 bytes
Suricata will create various logs (mainly eve.json, fast.log, and stats.log).
1
2
$ ls /var/log/suricata/
certs core eve.json fast.log files old_eve.json old_fast.log old_stats.log stats.log suricata.log suricata-start.log
To make the JSON easy to read, use jq '.'
1
cat eve.json | jq '.'
An alternative command can be executed to bypass checksums (-k flag) and log in a different directory (-l flag)
1
2
3
4
5
$ suricata -r /home/htb-student/pcaps/suspicious.pcap -k none -l .
5/7/2023 -- 13:37:43 - <Notice> - This is Suricata version 6.0.13 RELEASE running in USER mode
5/7/2023 -- 13:37:43 - <Notice> - all 3 packet processing threads, 4 management threads initialized, engine started.
5/7/2023 -- 13:37:43 - <Notice> - Signal Received. Stopping engine.
5/7/2023 -- 13:37:43 - <Notice> - Pcap-file module read 1 files, 5172 packets, 3941260 bytes
-k none (Checksum Validation): This flag require Suricata to ture off packet checksum.
-l . (Log Directory): This flag establish a directory to export log file (. mean the current folder)
#2. With live input (IDS Mode)
We can try Suricata’s (Live) LibPCAP mode
- List out all network interfaces with
ifconfig - Select an interface you want to monitor
- Turn the monitor on
sudo suricata --pcap=<interface>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
$ sudo suricata --pcap=ens160 -vv
[sudo] password for htb-student:
5/7/2023 -- 13:44:01 - <Notice> - This is Suricata version 6.0.13 RELEASE running in SYSTEM mode
5/7/2023 -- 13:44:01 - <Info> - CPUs/cores online: 2
**5/7/2023 -- 13:44:01 - <Info> - Setting engine mode to IDS mode by default**
5/7/2023 -- 13:44:01 - <Info> - Found an MTU of 1500 for 'ens160'
5/7/2023 -- 13:44:01 - <Info> - Found an MTU of 1500 for 'ens160'
**5/7/2023 -- 13:44:01 - <Info> - fast output device (regular) initialized: fast.log
5/7/2023 -- 13:44:01 - <Info> - eve-log output device (regular) initialized: eve.json
5/7/2023 -- 13:44:01 - <Info> - stats output device (regular) initialized: stats.log**
5/7/2023 -- 13:44:01 - <Info> - Running in live mode, activating unix socket
5/7/2023 -- 13:44:01 - <Perf> - using shared mpm ctx' for http_uri
5/7/2023 -- 13:44:01 - <Perf> - using shared mpm ctx' for http_uri
5/7/2023 -- 13:44:01 - <Perf> - using shared mpm ctx' for http_raw_uri
5/7/2023 -- 13:44:01 - <Perf> - using shared mpm ctx' for http_raw_uri
**5/7/2023 -- 13:44:01 - <Info> - 1 rule files processed. 1 rules successfully loaded, 0 rules failed**
5/7/2023 -- 13:44:01 - <Info> - Threshold config parsed: 0 rule(s) found
5/7/2023 -- 13:44:01 - <Perf> - using shared mpm ctx' for tcp-packet
5/7/2023 -- 13:44:01 - <Perf> - using shared mpm ctx' for tcp-stream
5/7/2023 -- 13:44:01 - <Perf> - using shared mpm ctx' for udp-packet
5/7/2023 -- 13:44:01 - <Perf> - using shared mpm ctx' for other-ip
5/7/2023 -- 13:44:01 - <Info> - 1 signatures processed. 0 are IP-only rules, 0 are inspecting packet payload, 1 inspect application layer, 0 are decoder event only
5/7/2023 -- 13:44:01 - <Perf> - TCP toserver: 1 port groups, 1 unique SGH's, 0 copies
5/7/2023 -- 13:44:01 - <Perf> - TCP toclient: 0 port groups, 0 unique SGH's, 0 copies
5/7/2023 -- 13:44:01 - <Perf> - UDP toserver: 1 port groups, 1 unique SGH's, 0 copies
5/7/2023 -- 13:44:01 - <Perf> - UDP toclient: 0 port groups, 0 unique SGH's, 0 copies
5/7/2023 -- 13:44:01 - <Perf> - OTHER toserver: 0 proto groups, 0 unique SGH's, 0 copies
5/7/2023 -- 13:44:01 - <Perf> - OTHER toclient: 0 proto groups, 0 unique SGH's, 0 copies
5/7/2023 -- 13:44:01 - <Perf> - Unique rule groups: 2
5/7/2023 -- 13:44:01 - <Perf> - Builtin MPM "toserver TCP packet": 0
5/7/2023 -- 13:44:01 - <Perf> - Builtin MPM "toclient TCP packet": 0
5/7/2023 -- 13:44:01 - <Perf> - Builtin MPM "toserver TCP stream": 0
5/7/2023 -- 13:44:01 - <Perf> - Builtin MPM "toclient TCP stream": 0
5/7/2023 -- 13:44:01 - <Perf> - Builtin MPM "toserver UDP packet": 0
5/7/2023 -- 13:44:01 - <Perf> - Builtin MPM "toclient UDP packet": 0
5/7/2023 -- 13:44:01 - <Perf> - Builtin MPM "other IP packet": 0
5/7/2023 -- 13:44:01 - <Perf> - AppLayer MPM "toserver dns_query (dns)": 1
5/7/2023 -- 13:44:01 - <Info> - Using 1 live device(s).
5/7/2023 -- 13:44:01 - <Info> - using interface ens160
5/7/2023 -- 13:44:01 - <Perf> - ens160: disabling rxcsum offloading
5/7/2023 -- 13:44:01 - <Perf> - ens160: disabling txcsum offloading
5/7/2023 -- 13:44:01 - <Info> - running in 'auto' checksum mode. Detection of interface state will require 1000ULL packets
5/7/2023 -- 13:44:01 - <Info> - Found an MTU of 1500 for 'ens160'
5/7/2023 -- 13:44:01 - <Info> - Set snaplen to 1524 for 'ens160'
5/7/2023 -- 13:44:01 - <Perf> - NIC offloading on ens160: RX unset TX unset
5/7/2023 -- 13:44:01 - <Perf> - NIC offloading on ens160: SG: unset, GRO: unset, LRO: unset, TSO: unset, GSO: unset
5/7/2023 -- 13:44:01 - <Info> - RunModeIdsPcapAutoFp initialised
5/7/2023 -- 13:44:01 - <Info> - Running in live mode, activating unix socket
5/7/2023 -- 13:44:01 - <Info> - Using unix socket file '/var/run/suricata/suricata-command.socket'
5/7/2023 -- 13:44:01 - <Notice> - all 3 packet processing threads, 4 management threads initialized, engine started.
We can also use Suricata in IDS mode with AF_PACKET input
Both sudo suricata -i ens160 and sudo suricata --af-packet=ens160 perform the exact same function.
AF_PACKET: It is a native Linux kernel technology that allows for extremely fast, direct packet capturing with much lower CPU usage compared to the older LibPCAP library.
The -i Flag’s Role: When run on Linux, -i automatically defaults to the superior AF_PACKET mode. You only need to explicitly use the --pcap flag if you specifically want to force Suricata to use the older LibPCAP method.
#3. For Suricata in Inline (NFQ) mode (IPS Mode)
First we need to establish this iptables command
1
$ sudo iptables -I FORWARD -j NFQUEUE --queue-num 0
This mean all traffic FORWARD through this machine must not be forwarded directly; instead, it must be intercepted and sent to an NFQUEUE (Netfilter Queue) queue 0.
The second command is to enable Suricata to monitor this queue
1
2
3
$ sudo suricata -q 0
5/7/2023 -- 13:52:38 - <Notice> - This is Suricata version 6.0.13 RELEASE running in SYSTEM mode
5/7/2023 -- 13:52:39 - <Notice> - all 4 packet processing threads, 4 management threads initialized, engine started.
Hands-on With Suricata Outputs
/var/log/suricata directory is where Suricata save logs. Among these logs, we find the eve.json, fast.log, and stats.log files.

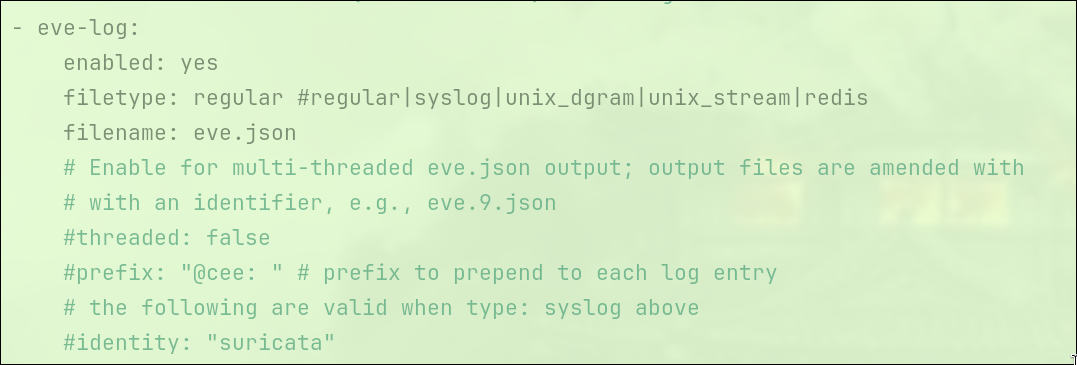

- eve.json: This file is Suricata’s recommended output and contains JSON objects, each carrying diverse information. You cant use
jq 'select(**<something>**)'to select specific things on the file.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
$ cat /var/log/suricata/old_eve.json | jq 'select(.event_type == "alert")'
{
"timestamp": "2023-07-06T08:34:35.003163+0000",
"flow_id": 1959965318909019,
"in_iface": "ens160",
"event_type": "alert",
"src_ip": "10.9.24.101",
"src_port": 51833,
"dest_ip": "10.9.24.1",
"dest_port": 53,
"proto": "UDP",
"tx_id": 0,
"alert": {
"action": "allowed",
"gid": 1,
"signature_id": 1,
"rev": 0,
"signature": "Known bad DNS lookup, possible Dridex infection",
"category": "",
"severity": 3
},
"dns": {
"query": [
{
"type": "query",
"id": 6430,
"rrname": "adv.epostoday.uk",
"rrtype": "A",
"tx_id": 0,
"opcode": 0
}
]
},
"app_proto": "dns",
"flow": {
"pkts_toserver": 1,
"pkts_toclient": 0,
"bytes_toserver": 76,
"bytes_toclient": 0,
"start": "2023-07-06T08:34:35.003163+0000"
}
}
| Field | Meaning | | — | — | | timestamp | When the event occurred | | flow_id | Unique identifier of the network flow | | event_type | Type of event | | src_ip | Source IP | | src_port | Source port | | dest_ip | Destination IP | | dest_port | Destination port |
- fast.log: This is a text-based log format that records alerts only and is enabled by default.
1
2
$ cat /var/log/suricata/old_fast.log
07/06/2023-08:34:35.003163 [**] [1:1:0] Known bad DNS lookup, possible Dridex infection [**] [Classification: (null)] [Priority: 3] {UDP} 10.9.24.101:51833 -> 10.9.24.1:53
- stats.log: This is a human-readable statistics log, which can be particularly useful while debugging Suricata deployments.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
$ cat /var/log/suricata/old_stats.log
------------------------------------------------------------------------------------
Date: 7/6/2023 -- 08:34:24 (uptime: 0d, 00h 00m 08s)
------------------------------------------------------------------------------------
Counter | TM Name | Value
------------------------------------------------------------------------------------
capture.kernel_packets | Total | 4
decoder.pkts | Total | 3
decoder.bytes | Total | 212
decoder.ipv6 | Total | 1
decoder.ethernet | Total | 3
decoder.icmpv6 | Total | 1
decoder.avg_pkt_size | Total | 70
decoder.max_pkt_size | Total | 110
flow.icmpv6 | Total | 1
flow.wrk.spare_sync_avg | Total | 100
flow.wrk.spare_sync | Total | 1
flow.mgr.full_hash_pass | Total | 1
flow.spare | Total | 9900
tcp.memuse | Total | 606208
tcp.reassembly_memuse | Total | 98304
flow.memuse | Total | 7394304
------------------------------------------------------------------------------------
---SNIP---
Note: Instead of relying on the massive, comprehensive
eve.jsonfile, Suricata can be configured to generate focused, protocol-specific logs (likehttp.log) to save storage space and simplify targeted network analysis.
Hands-on With Suricata Outputs - File Extraction
Suricata has file extraction feature allows us to capture and store files transferred.
First, tell Suricata how to handle extracted files by editing the suricata.yaml configuration file. Locate the file-store section and apply the following settings:
1
2
3
4
file-store:
version: 2
enabled: yes
force-filestore: yes

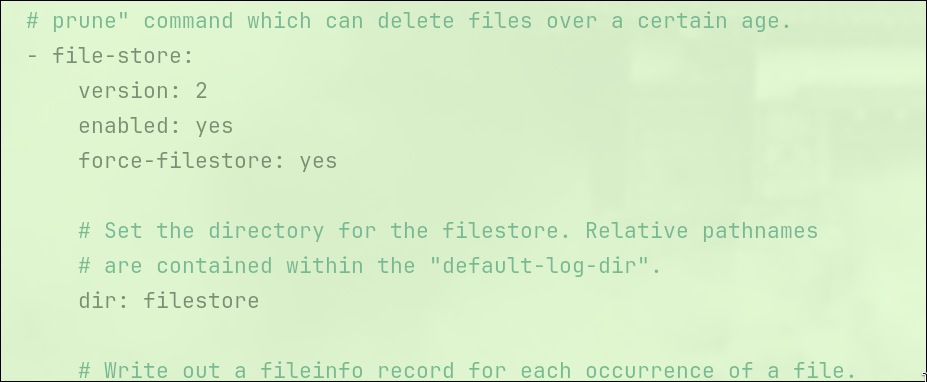

In the same file-store section, we define where Suricata stores the extracted files. We set the dir option to the directory of our choice (I’m let it be default).
File extraction does not happen automatically. You must give Suricata explicit instructions by writing a rule. (rule for only filestore).
1
alert http any any -> any any (msg:"FILE store all"; **filestore**; sid:2; rev:1;)
When the file is being extracted, it will be saved in a hash-based directory structure, you can . You can list all of them by using:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
$ sudo find <folder_name> -type f
<folder_name>/fb/fb20d18d00c806deafe14859052072aecfb9f46be6210acfce80289740f2e20e
<folder_name>/21/214306c98a3483048d6a69eec6bf3b50497363bc2c98ed3cd954203ec52455e5
<folder_name>/21/21742fc621f83041db2e47b0899f5aea6caa00a4b67dbff0aae823e6817c5433
<folder_name>/26/2694f69c4abf2471e09f6263f66eb675a0ca6ce58050647dcdcfebaf69f11ff4
<folder_name>/2c/2ca1a0cd9d8727279f0ba99fd051e1c0acd621448ad4362e1c9fc78700015228
<folder_name>/7d/7d4c00f96f38e0ffd89bc2d69005c4212ef577354cc97d632a09f51b2d37f877
<folder_name>/6b/6b7fee8a4b813b6405361db2e70a4f5a213b34875dd2793667519117d8ca0e4e
<folder_name>/2e/2e2cb2cac099f08bc51abba263d9e3f8ac7176b54039cc30bbd4a45cfa769018
<folder_name>/50/508c47dd306da3084475faae17b3acd5ff2700d2cd85d71428cdfaae28c9fd41
<folder_name>/c2/c210f737f55716a089a33daf42658afe771cfb43228ffa405d338555a9918815
<folder_name>/ea/ea0936257b8d96ee6ae443adee0f3dacc3eff72b559cd5ee3f9d6763cf5ee2ab
<folder_name>/1a/1aab7d9c153887dfa63853534f684e5d46ecd17ba60cd3d61050f7f231c4babb
<folder_name>/c4/c4775e980c97b162fd15e0010663694c4e09f049ff701d9671e1578958388b9f
<folder_name>/63/63de4512dfbd0087f929b0e070cc90d534d6baabf2cdfbeaf76bee24ff9b1638
<folder_name>/48/482d9972c2152ca96616dc23bbaace55804c9d52f5d8b253b617919bb773d3bb
<folder_name>/8e/8ea3146c676ba436c0392c3ec26ee744155af4e4eca65f4e99ec68574a747a14
<folder_name>/8e/8e23160cc504b4551a94943e677f6985fa331659a1ba58ef01afb76574d2ad7c
<folder_name>/a5/a52dac473b33c22112a6f53c6a625f39fe0d6642eb436e5d125342a24de4458l
And then using xxd to peak inside the file:
1
2
3
4
5
6
7
8
9
10
11
$ sudo xxd <folder_name>/21/21742fc621f83041db2e47b0899f5aea6caa00a4b67dbff0aae823e6817c5433 | head
00000000: 4d5a 9000 0300 0000 0400 0000 ffff 0000 MZ..............
00000010: b800 0000 0000 0000 4000 0000 e907 0000 ........@.......
00000020: 0000 0000 0000 0000 0000 0000 0000 0000 ................
00000030: 0000 0000 0000 0000 0000 0000 8000 0000 ................
00000040: 0e1f ba0e 00b4 09cd 21b8 014c cd21 5468 ........!..L.!Th
00000050: 6973 2070 726f 6772 616d 2063 616e 6e6f is program canno
00000060: 7420 6265 2072 756e 2069 6e20 444f 5320 t be run in DOS
00000070: 6d6f 6465 2e0d 0d0a 2400 0000 0000 0000 mode....$.......
00000080: 5045 0000 4c01 0300 fc90 8448 0000 0000 PE..L......H....
00000090: 0000 0000 e000 0f01 0b01 0600 00d0 0000 ................
In this case, the file was a Windows executable based on the file’s header. More about the MS-DOS EXE format can be found in following resource MZ.
Live Rule Reloading Feature & Updating Suricata Rulesets
Live rule reloading allows us to update our ruleset without interrupting ongoing traffic inspection.
In the suricata.yaml file, we should locate the detect-engine section and set the value of the reload parameter to true.
1
2
detect-engine:
- reload: true
If is not there, just add it in.
Validating Suricata’s Configuration
To validate the configuration, we can use the -T option provided by the Suricata command. This command runs a test to check if the configuration file is valid and all files referenced in the configuration are accessible.
1
2
3
4
$ sudo suricata -T -c /etc/suricata/suricata.yaml
18/6/2026 -- 12:06:52 - <Info> - Running suricata under test mode
18/6/2026 -- 12:06:52 - <Notice> - This is Suricata version 6.0.13 RELEASE running in SYSTEM mode
18/6/2026 -- 12:06:53 - <Notice> - Configuration provided was successfully loaded. Exiting.
Suricata Documentation
Suricata Rule Development Part 1
Suricata Rule Anatomy
Here is a structure of Suricata rule
1
action protocol from_ip port -> to_ip port (msg:"Known malicious behavior, possible X malware infection"; content:"some thing"; content:"some other thing"; sid:10000001; rev:1;)
#1 Core Rule Structure & Components
| Category | Component / Keyword | Description | Examples / Usage | | — | — | — | — | | Header | Action | Instructs Suricata on what to do when a match occurs. | alert, log, pass, drop, reject | | | Protocol | The network protocol where the rule is evaluated. | tcp, udp, icmp, ip, http, tls, dns | | | Directionality | Arrows indicating the traffic flow between source and destination IPs/Ports. | -> (One-way)<> (Bidirectional) | | | Ports | The specific ports where traffic is evaluated. | 80, [8443,8080,!8443], $UNCOMMON_PORTS | | Message & Content | msg | The human-readable alert message displayed to analysts. | msg:"SSH connection attempt"; | | | flow | Identifies the originator/responder and monitors session states (e.g., “established”). | flow:to_server, established; | | | dsize | Matches based on the payload size (TCP segment length). | dsize:>10000; | | | content | The exact byte sequences or strings Suricata searches for in the payload. | content:"image/gif";content:" | | | **Rule Buffers** | Targets specific packet segments to save time/resources instead of searching everything. | http.accept;, http_method;, http_uri; | | **Rule Options** | **nocase** | Makes the preceding content match case-insensitive. | content:”User-Agent”; nocase; | | | **offset** | Defines the exact starting byte position for a content match within the payload. | offset:0; depth:5; | | | **distance** | The minimum bytes to skip *after* a previous match before searching for the next. | distance:10; | | | **within** | The maximum byte window to search in *after* the distance anchor point. | within:80; | | **Metadata** | **sid** | Signature ID; a unique numeric identifier for the rule. | sid:10000001; | | | **rev** | Revision number; tracks the evolution/version of the rule. | rev:1; | | | **reference** | Provides a link or trail back to the source information that inspired the rule. | reference:url,example.com;` |
When you write a new rule yourself, you cannot just pick random sid numbers (like sid:1 or sid:2) because they will conflict with existing system rules. The sid numbers are divided into the following ranges:
- From 1 to 999,999: The zone reserved exclusively for the default rules built into the Snort/Suricata software itself. (You should not use this range).
- From 1,000,000 to 1,999,999: The free zone dedicated to Local rules (custom/self-written rules). When creating a rule for your company or doing an exercise, you should start picking numbers from 1 million upwards (e.g.,
sid:1000001;). - From 2,000,000 and above: The zone for professional Rule providers (such as Emerging Threats - ET, Abuse.ch). For example, the rule catching Dridex had the
sid2023476, just by seeing that it falls in the 2 million range, you instantly know it was downloaded from a well-known, professional repository.
PCRE (Perl Compatible Regular Expression) Breakdown
PCRE allows for advanced pattern matching using regular expressions. It should be enclosed in slashes (e.g., /pattern/flags) and should generally be used alongside content matches for performance.
Example Pattern Analyzed: !"/^\$?[\sa-z\\_0-9.-]*(\&|$)/iRP"
| Character / Flag | Meaning in this Regex |
|---|---|
! | Inverted match: Triggers only when the pattern is not found. |
/ ... / | The boundaries encasing the regular expression. |
^ | Anchor: Matches the start of the line/buffer. |
\$? | Checks for an optional literal dollar sign ($) at the start. |
[ ... ]* | Matches zero or more (*) of any characters defined inside the brackets. |
\s | Matches a space character. |
a-z | Matches any lowercase letter. |
\\ | Matches a literal backslash. |
_0-9.- | Matches an underscore, any digit, a period, or a hyphen. |
(\&|$) | Matches either a literal ampersand (&) OR (|) the end of the line ($). |
i | Flag: Makes the regex case-insensitive. |
R | Flag: Makes the match relative to the previous match. |
P | Flag: Inspects the specific HTTP buffer requested (matches with rule buffers like http_client_body). |
IDS/IPS Rule Development Approaches
#1. Choosing Your Approach
- Signature-based Detection: You are looking for specific, known evidence of malware.
- Highly precise for known threats, but bad at catching zero-days.
- You use exact string matches like
content:"malicious_string";or advanced regex withpcre:"/regex/".
- Anomaly/Behavior-based Detection: You aren’t looking for a specific file, but rather weird behavior (e.g., a massive data transfer or using a strange port).
- Great for catching new, unknown threats, but generates more false positives.
- You set unusual ports in the header (e.g.,
> $HOME_NET $UNCOMMON_PORTS) or use measurement keywords to detect payload larger than usual likedsize:>10000;.
- Stateful Protocol Analysis: You are checking if the connection behaves according to the rules of normal network traffic (baseline).
- Tracks the state of the connection to identify unexpected deviations.
- You use the
flowkeyword to monitor session states, such asflow:established, to_server;(only inspect traffic if a valid connection was already made).
#2. The Rule Structure
No matter which strategy you chose above, when it’s time to write the rule, read it from left to right using this template:
[Action] [Protocol] [Src IP] [Port] -> [Dest IP] [Port] ( msg:”Description”; content:”Keyword”; [Position Modifiers]; sid:Number; rev:1; )
- WHO & WHERE: Who is traveling, where are they going, and how?
- Example:
alert tcp $EXTERNAL_NET any -> $HOME_NET 80- WHAT: Name the alert so your analyst team knows immediately what happened.
- Example:
msg:"Detected backdoor access attempt";- WHAT TO FIND & HOW: What exact evidence are you looking for, and where should Suricata look to save time?
- Example:
content:"/login.php"; nocase; http_uri;(Look for the text “/login.php”, ignore capitalization, and only search inside the URL path).- WRITE IT DOWN: Assign a tracking number.
- Example:
sid:100001; rev:1;
#3. Three Golden Rules for Writing
- Copy and Tweak: Nobody writes a rule from a blank page. Always find an existing, working rule (like from Emerging Threats) that closely matches your goal. Copy it, then modify the IPs, Ports, and
contentfields to suit your needs. - Limit the Scope for Performance: If you force Suricata to blindly scan every byte of every packet, your network will slow down. Always pair your
contentmatches with position modifiers likehttp_uri,http_client_body, or useoffset(where to start looking) anddepth(how far to look). - Regex is a Last Resort: PCRE uses a massive amount of CPU. Only use it when standard content matching fails (like finding randomized malware strings). If you must use regex, always put a fast, simple
contentmatch before thepcrestatement so Suricata can filter out harmless traffic before doing the heavy lifting.
Suricata Rule Development Example 1: Detecting PowerShell Empire
The Suricata rule below is designed to detect possible outbound activity from PowerShell Empire, a common post-exploitation framework used by attackers.
1
alert http $HOME_NET any -> $EXTERNAL_NET any (msg:"ET MALWARE Possible PowerShell Empire Activity Outbound"; flow:established,to_server; content:"GET"; http_method; content:"/"; http_uri; depth:1; pcre:"/^(?:login\/process|admin\/get|news)\.php$/RU"; content:"session="; http_cookie; pcre:"/^(?:[A-Z0-9+/]{4})*(?:[A-Z0-9+/]{2}==|[A-Z0-9+/]{3}=|[A-Z0-9+/]{4})$/CRi"; content:"Mozilla|2f|5.0|20 28|Windows|20|NT|20|6.1"; http_user_agent; http_start; content:".php|20|HTTP|2f|1.1|0d 0a|Cookie|3a 20|session="; fast_pattern; http_header_names; content:!"Referer"; content:!"Cache"; content:!"Accept"; sid:2027512; rev:1;)
Suricata Rule Development Example 2: Detecting Covenant
1
alert tcp any any -> $HOME_NET any (msg:"detected by body"; content:"<title>Hello World!</title>"; detection_filter: track by_src, count 4 , seconds 10; priority:1; sid:3000011;)
Rule source: Signature-based IDS for Encrypted C2 Traffic Detection - Eduardo Macedo
The (inefficient) Suricata rule above is designed to detect certain variations of Covenant, another common post-exploitation framework used by attackers.
Suricata Rule Development Example 3: Detecting Covenant (Using Analytics)
1
alert tcp $HOME_NET any -> any any (msg:"detected by size and counter"; dsize:312; detection_filter: track by_src, count 3 , seconds 10; priority:1; sid:3000001;)
This Suricata rule is designed to generate a high-priority alert if it detects at least three instances of TCP traffic within ten seconds that each contain a data payload of exactly 312 bytes, all originating from the same source IP within our network and headed anywhere.
Suricata Rule Development Example 4: Detecting Sliver
1
alert tcp any any -> any any (msg:"Sliver C2 Implant Detected"; content:"POST"; pcre:"/\/(php|api|upload|actions|rest|v1|oauth2callback|authenticate|oauth2|oauth|auth|database|db|namespaces)(.*?)((login|signin|api|samples|rpc|index|admin|register|sign-up)\.php)\?[a-z_]{1,2}=[a-z0-9]{1,10}/i"; sid:1000007; rev:1;)
Rule source: https://www.bilibili.com/read/cv19510951/
The Suricata rule above is designed to detect certain variations of Sliver, yet another common post-exploitation framework used by attackers.
Suricata Rule Development Part 2 (Encrypted Traffic)
By examining the plaintext details of SSL/TLS certificates, such as the issuer and domain information, security systems can identify anomalous or suspicious infrastructure.
Additionally, utilizing JA3 fingerprinting creates a unique hash from the client’s initial handshake request, allowing defenders to reliably identify and block specific malware families even when the actual payload is hidden.
Suricata Rule Development Example 5: Detecting Dridex (TLS Encrypted)
1
alert tls $EXTERNAL_NET any -> $HOME_NET any (msg:"ET MALWARE ABUSE.CH SSL Blacklist Malicious SSL certificate detected (Dridex)"; flow:established,from_server; content:"|16|"; content:"|0b|"; within:8; byte_test:3,<,1200,0,relative; content:"|03 02 01 02 02 09 00|"; fast_pattern; content:"|30 09 06 03 55 04 06 13 02|"; distance:0; pcre:"/^[A-Z]{2}/R"; content:"|55 04 07|"; distance:0; content:"|55 04 0a|"; distance:0; pcre:"/^.{2}[A-Z][a-z]{3,}\s(?:[A-Z][a-z]{3,}\s)?(?:[A-Z](?:[A-Za-z]{0,4}?[A-Z]|(?:\.[A-Za-z]){1,3})|[A-Z]?[a-z]+|[a-z](?:\.[A-Za-z]){1,3})\.?[01]/Rs"; content:"|55 04 03|"; distance:0; byte_test:1,>,13,1,relative; content:!"www."; distance:2; within:4; pcre:"/^.{2}(?P<CN>(?:(?:\d?[A-Z]?|[A-Z]?\d?)(?:[a-z]{3,20}|[a-z]{3,6}[0-9_][a-z]{3,6})\.){0,2}?(?:\d?[A-Z]?|[A-Z]?\d?)[a-z]{3,}(?:[0-9_-][a-z]{3,})?\.(?!com|org|net|tv)[a-z]{2,9})[01].*?(?P=CN)[01]/Rs"; content:!"|2a 86 48 86 f7 0d 01 09 01|"; content:!"GoDaddy"; sid:2023476; rev:5;)
The rule above triggers an alert upon detecting a TLS session from the external network to the home network, where the payload of the session contains specific byte patterns and meets several conditions. These patterns and conditions correspond to SSL certificates that have been linked to certain variations of the Dridex trojan, as referenced by the SSL blacklist on abuse.ch
Suricata Rule Development Example 6: Detecting Sliver (TLS Encrypted)
1
alert tls any any -> any any (msg:"Sliver C2 SSL"; ja3.hash; content:"473cd7cb9faa642487833865d516e578"; sid:1002; rev:1;)
The Suricata rule above is designed to detect certain variations of Sliver whenever it identifies a TLS connection with a specific JA3 hash.

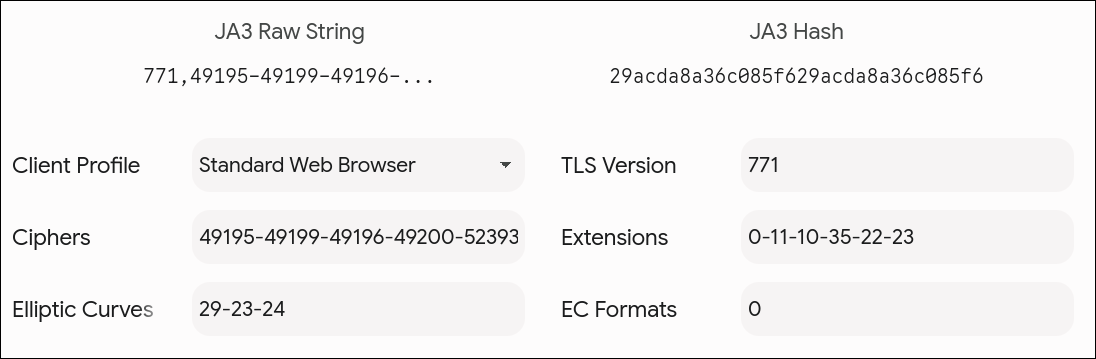

The JA3 hash can be calculated by using ja3 tool.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
**$ ja3 -a --json /home/htb-student/pcaps/sliverenc.pcap**
[
{
"destination_ip": "23.152.0.91",
"destination_port": 443,
"ja3": "771,49195-49199-49196-49200-52393-52392-49161-49171-49162-49172-156-157-47-53-49170-10-4865-4866-4867,0-5-10-11-13-65281-18-43-51,29-23-24-25,0",
"ja3_digest": "473cd7cb9faa642487833865d516e578",
"source_ip": "10.10.20.101",
"source_port": 53222,
"timestamp": 1634749464.600896
},
{
"destination_ip": "23.152.0.91",
"destination_port": 443,
"ja3": "771,49195-49199-49196-49200-52393-52392-49161-49171-49162-49172-156-157-47-53-49170-10-4865-4866-4867,0-5-10-11-13-65281-18-43-51,29-23-24-25,0",
"ja3_digest": "473cd7cb9faa642487833865d516e578",
"source_ip": "10.10.20.101",
"source_port": 53225,
"timestamp": 1634749465.069819
},
{
"destination_ip": "23.152.0.91",
"destination_port": 443,
"ja3": "771,49195-49199-49196-49200-52393-52392-49161-49171-49162-49172-156-157-47-53-49170-10-4865-4866-4867,0-5-10-11-13-65281-18-43-51,29-23-24-25,0",
"ja3_digest": "473cd7cb9faa642487833865d516e578",
"source_ip": "10.10.20.101",
"source_port": 53229,
"timestamp": 1634749585.240773
},
---SNIP---
Snort
Snort Fundamentals
Snort is an open-source tool, which serves as both an Intrusion Detection System (IDS) and Intrusion Prevention System (IPS), but can also function as a packet logger or sniffer, akin to Suricata.
Snort Operation Modes
- Inline IDS/IPS (block traffic)
- Passive IDS (observe and detect traffic)
- Network-based IDS
- Host-based IDS (not ideally)
-r (Read): You hand Snort a .pcap file. Snort will watches and writes a report about anything shady it saw.
-i (Interface): You tell Snort to watch a live network cable (like eth0).
-Q (Inline): This flag tells Snort to actually **drop any bad packets.
DAQ (Data Acquisition) is the underlying technology that decides how Snort gets its hands on the network traffic.
afpacket is the name of a specific DAQ tool used in Linux. It acts like a special pair of gloves that allows Snort to directly grab, inspect, and drop live network packets as they arrive at the Linux network card.
Snort Architecture
| Component | Function | Input | Output |
|---|---|---|---|
| Packet Sniffer (Packet Decoder) | Captures network traffic and recognizes the structure of each packet. | Raw network packets from the network interface. | Decoded packets forwarded to the Preprocessors. |
| Preprocessors | Analyze packets to identify their type, behavior, or anomalies before rule inspection. Configured in snort.lua. | Decoded packets from the Packet Sniffer. | Processed packet information forwarded to the Detection Engine. |
| Detection Engine | Compares packets against the configured Snort ruleset to determine whether suspicious activity is present. | Processed packet data from the Preprocessors. | Matching events forwarded to the Logging and Alerting System. |
| Logging and Alerting System | Records events and generates alerts according to the actions specified in Snort rules. | Events generated by the Detection Engine. | Log entries and security alerts. |
| Output Modules | Determine how and where logs and alerts are stored or transmitted. Configured in snort.lua. | Alerts and log data from the Logging and Alerting System. | Output to syslog, unified2 files, databases, or other configured destinations. |
Snort Configuration & Validating Snort’s Configuration
| Section | Role in the Security Pipeline | | — | — | | Network Variables | Defines your “Home” vs. “External” networks. | | Decoder Config | Dictates how to deconstruct incoming raw packets (Ethernet, IP, TCP, etc.). | | Base Detection Engine | Manages how Snort matches traffic patterns against the rule database. | | Dynamic Library Config | Allows you to load modular plugins (shared objects) to add features without needing to recompile the whole Snort source code. | | Preprocessor Config | Normalizes traffic (e.g., reassembling fragmented TCP streams or decoding HTTP) so the detection engine can understand the full context. | | Output Plugin Config | Decides if alerts go to the console, a flat log file, or a database (like Elasticsearch or SQL). | | Rule Set Customization | Tells Snort which specific sets of threat intelligence signatures to load and enforce. | | Decoder/Preprocessor Rules | Specific rules for spotting malformed packets or evasion techniques used by attackers to sneak past the decoder. | | Shared Object Rules | Advanced, pre-compiled rules that are often faster or allow for more complex detection logic than standard text-based rules. |
snort_defaults.lua: Contains predefined paths (like where rules are stored) and standard variables. (Don’t edit this file directly → leave it as your baseline.)snort.lua: You use this file to override the defaults and implement your specific security policy.
Pro-Tips
Test Before You Run: Never restart your production service without validating your config first. Use the
Tflag to check for syntax errors:snort -c /path/to/snort.lua -T-cfor configuration.-Truns Snort in test modeIf it returns “Snort successfully validated the configuration,” you are good to go.
- Modularize: If your configuration gets too large, you can create separate Lua files and use the
includefunction insnort.luato keep things organized. - Start with the Network: Always prioritize configuring your
HOME_NETvariable correctly. If Snort doesn’t know what your network looks like, all the advanced detection rules will be much less effective.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
**$ sudo more /root/snorty/etc/snort/snort.lua**
---------------------------------------------------------------------------
-- Snort++ configuration
---------------------------------------------------------------------------
-- there are over 200 modules available to tune your policy.
-- many can be used with defaults w/o any explicit configuration.
-- use this conf as a template for your specific configuration.
-- 1. configure defaults
-- 2. configure inspection
-- 3. configure bindings
-- 4. configure performance
-- 5. configure detection
-- 6. configure filters
-- 7. configure outputs
-- 8. configure tweaks
---------------------------------------------------------------------------
-- 1. configure defaults
---------------------------------------------------------------------------
-- HOME_NET and EXTERNAL_NET must be set now
-- setup the network addresses you are protecting
HOME_NET = 'any'
-- set up the external network addresses.
-- (leave as "any" in most situations)
EXTERNAL_NET = 'any'
include 'snort_defaults.lua'
---------------------------------------------------------------------------
-- 2. configure inspection
---------------------------------------------------------------------------
-- mod = { } uses internal defaults
-- you can see them with snort --help-module mod
-- mod = default_mod uses external defaults
-- you can see them in snort_defaults.lua
-- the following are quite capable with defaults:
stream = { }
stream_ip = { }
stream_icmp = { }
stream_tcp = { }
stream_udp = { }
stream_user = { }
stream_file = { }
---SNIP---
In Snort 3, everything is a module. Whether it’s a protocol analyzer (like http_inspect), a logger (like alert_json), or a detection inspector (like arp_spoof), they all follow the same pattern
- Discovery: Use
snort --help-modulesto see what is available in your build.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
**$ snort --help-modules**
ack (ips_option): rule option to match on TCP ack numbers
active (basic): configure responses
address_space_selector (policy_selector): configure traffic processing based on address space
alert_csv (logger): output event in csv format
alert_fast (logger): output event with brief text format
alert_full (logger): output event with full packet dump
alert_json (logger): output event in json format
alert_syslog (logger): output event to syslog
alert_talos (logger): output event in Talos alert format
alert_unixsock (logger): output event over unix socket
alerts (basic): configure alerts
appid (inspector): application and service identification
appids (ips_option): detection option for application ids
arp (codec): support for address resolution protocol
arp_spoof (inspector): detect ARP attacks and anomalies
---SNIP---
- Inspection: Use
snort --help-config <module_name>to see the specific parameters you can tune for that module.
1
2
3
**$ snort --help-config arp_spoof**
ip4 arp_spoof.hosts[].ip: host ip address
mac arp_spoof.hosts[].mac: host mac address
- Implementation: Define these modules in
snort.luausing Lua tables.
To validating configuration files to Snort, use
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
**$ snort -c /root/snorty/etc/snort/snort.lua --daq-dir /usr/local/lib/daq**
--------------------------------------------------
o")~ Snort++ 3.1.64.0
--------------------------------------------------
Loading /root/snorty/etc/snort/snort.lua:
Loading snort_defaults.lua:
Finished snort_defaults.lua:
output
ips
classifications
references
binder
file_id
ftp_server
smtp
port_scan
gtp_inspect
dce_smb
s7commplus
modbus
ssh
active
alerts
daq
decode
host_cache
host_tracker
hosts
network
packets
process
search_engine
so_proxy
stream_icmp
normalizer
stream
stream_ip
stream_tcp
stream_udp
stream_user
stream_file
arp_spoof
back_orifice
dns
imap
netflow
pop
rpc_decode
sip
ssl
telnet
cip
dnp3
iec104
mms
dce_tcp
dce_udp
dce_http_proxy
dce_http_server
ftp_client
ftp_data
http_inspect
http2_inspect
file_policy
js_norm
appid
wizard
trace
Finished /root/snorty/etc/snort/snort.lua:
Loading file_id.rules_file:
Loading file_magic.rules:
Finished file_magic.rules:
Finished file_id.rules_file:
--------------------------------------------------
ips policies rule stats
id loaded shared enabled file
0 208 0 208 /root/snorty/etc/snort/snort.lua
--------------------------------------------------
rule counts
total rules loaded: 208
text rules: 208
option chains: 208
chain headers: 1
--------------------------------------------------
service rule counts to-srv to-cli
file_id: 208 208
total: 208 208
--------------------------------------------------
fast pattern groups
to_server: 1
to_client: 1
--------------------------------------------------
search engine (ac_bnfa)
instances: 2
patterns: 416
pattern chars: 2508
num states: 1778
num match states: 370
memory scale: KB
total memory: 68.5879
pattern memory: 18.6973
match list memory: 27.3281
transition memory: 22.3125
appid: MaxRss diff: 3084
appid: patterns loaded: 300
--------------------------------------------------
pcap DAQ configured to passive.
Snort successfully validated the configuration (with 0 warnings).
o")~ Snort exiting
LibDAQ is the “Data Acquisition Library.” It is an abstraction layer that allows Snort to communicate with different network sources (hardware NICs, virtual bridges, or packet capture files).
--daq-dir told Snort where to identify the DAQ (Data Acquisition) modules installed on the system.
-c for configuration.
Snort Inputs
Use .pcap file with -r:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
**$ sudo snort -c /root/snorty/etc/snort/snort.lua --daq-dir /usr/local/lib/daq -r /home/htb-student/pcaps/icmp.pcap**
--------------------------------------------------
o")~ Snort++ 3.1.64.0
--------------------------------------------------
Loading /root/snorty/etc/snort/snort.lua:
Loading snort_defaults.lua:
Finished snort_defaults.lua:
---SNIP---
Finished /root/snorty/etc/snort/snort.lua:
Loading file_id.rules_file:
Loading file_magic.rules:
Finished file_magic.rules:
Finished file_id.rules_file:
--------------------------------------------------
ips policies rule stats
id loaded shared enabled file
0 208 0 208 /root/snorty/etc/snort/snort.lua
--------------------------------------------------
rule counts
total rules loaded: 208
text rules: 208
option chains: 208
chain headers: 1
--------------------------------------------------
service rule counts to-srv to-cli
file_id: 208 208
total: 208 208
--------------------------------------------------
fast pattern groups
to_server: 1
to_client: 1
--------------------------------------------------
search engine (ac_bnfa)
instances: 2
patterns: 416
pattern chars: 2508
num states: 1778
num match states: 370
memory scale: KB
total memory: 68.5879
pattern memory: 18.6973
match list memory: 27.3281
transition memory: 22.3125
appid: MaxRss diff: 3024
appid: patterns loaded: 300
--------------------------------------------------
pcap DAQ configured to read-file.
Commencing packet processing
++ [0] /home/htb-student/pcaps/icmp.pcap
-- [0] /home/htb-student/pcaps/icmp.pcap
--------------------------------------------------
Packet Statistics
--------------------------------------------------
daq
pcaps: 1
received: 8
analyzed: 8
allow: 8
rx_bytes: 592
--------------------------------------------------
codec
total: 8 (100.000%)
eth: 8 (100.000%)
icmp4: 8 (100.000%)
ipv4: 8 (100.000%)
--------------------------------------------------
Module Statistics
--------------------------------------------------
appid
packets: 8
processed_packets: 8
total_sessions: 1
--------------------------------------------------
binder
new_flows: 1
inspects: 1
--------------------------------------------------
detection
analyzed: 8
--------------------------------------------------
port_scan
packets: 8
trackers: 2
--------------------------------------------------
stream
flows: 1
--------------------------------------------------
stream_icmp
sessions: 1
max: 1
created: 1
released: 1
--------------------------------------------------
Summary Statistics
--------------------------------------------------
timing
runtime: 00:00:00
seconds: 0.033229
pkts/sec: 241
o")~ Snort exiting
listen on active network interfaces with -i: **
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
**$ sudo snort -c /root/snorty/etc/snort/snort.lua --daq-dir /usr/local/lib/daq -i ens160**
--------------------------------------------------
o")~ Snort++ 3.1.64.0
--------------------------------------------------
Loading /root/snorty/etc/snort/snort.lua:
Loading snort_defaults.lua:
Finished snort_defaults.lua:
---SNIP---
Finished /root/snorty/etc/snort/snort.lua:
Loading file_id.rules_file:
Loading file_magic.rules:
Finished file_magic.rules:
Finished file_id.rules_file:
--------------------------------------------------
ips policies rule stats
id loaded shared enabled file
0 208 0 208 /root/snorty/etc/snort/snort.lua
--------------------------------------------------
rule counts
total rules loaded: 208
text rules: 208
option chains: 208
chain headers: 1
--------------------------------------------------
service rule counts to-srv to-cli
file_id: 208 208
total: 208 208
--------------------------------------------------
fast pattern groups
to_server: 1
to_client: 1
--------------------------------------------------
search engine (ac_bnfa)
instances: 2
patterns: 416
pattern chars: 2508
num states: 1778
num match states: 370
memory scale: KB
total memory: 68.5879
pattern memory: 18.6973
match list memory: 27.3281
transition memory: 22.3125
appid: MaxRss diff: 2820
appid: patterns loaded: 300
--------------------------------------------------
pcap DAQ configured to passive.
Commencing packet processing
++ [0] ens160
^C** caught int signal
== stopping
-- [0] ens160
--------------------------------------------------
Packet Statistics
--------------------------------------------------
daq
received: 33
analyzed: 33
allow: 33
idle: 9
rx_bytes: 2756
--------------------------------------------------
codec
total: 33 (100.000%)
discards: 2 ( 6.061%)
arp: 13 ( 39.394%)
eth: 33 (100.000%)
icmp4: 12 ( 36.364%)
icmp6: 3 ( 9.091%)
ipv4: 17 ( 51.515%)
ipv6: 3 ( 9.091%)
tcp: 5 ( 15.152%)
--------------------------------------------------
Module Statistics
--------------------------------------------------
appid
packets: 18
processed_packets: 16
ignored_packets: 2
total_sessions: 3
--------------------------------------------------
arp_spoof
packets: 13
--------------------------------------------------
binder
raw_packets: 15
new_flows: 3
inspects: 18
--------------------------------------------------
detection
analyzed: 33
--------------------------------------------------
port_scan
packets: 20
trackers: 8
--------------------------------------------------
stream
flows: 3
--------------------------------------------------
stream_icmp
sessions: 2
max: 2
created: 2
released: 2
--------------------------------------------------
stream_tcp
sessions: 1
max: 1
created: 1
released: 1
instantiated: 1
setups: 1
data_trackers: 1
segs_queued: 1
segs_released: 1
max_segs: 1
max_bytes: 64
--------------------------------------------------
tcp
bad_tcp4_checksum: 2
--------------------------------------------------
Appid Statistics
--------------------------------------------------
detected apps and services
Application: Services Clients Users Payloads Misc Referred
unknown: 1 0 0 0 0 0
--------------------------------------------------
Summary Statistics
--------------------------------------------------
process
signals: 1
--------------------------------------------------
timing
runtime: 00:00:25
seconds: 25.182182
pkts/sec: 1
o")~ Snort exiting
Snort Rules
Snort rules, kinda like Suricata rules.
You can studying Snort rule writing from the following resources: https://docs.snort.org/, https://docs.suricata.io/en/latest/rules/differences-from-snort.html.
Just like in Suricata, you need to specify in the configuration file which rule file Snort should use, for example:
1
2
3
4
5
6
ips =
{
{ variables = default_variables,
include = '/home/htb-student/local.rules'
}
}
Here, include = '/home/htb-student/local.rules' means “when Snort starts, load and use this rule file.”
- Use
-Rfollowed by a file path if you want to load just one specific rules file. - Use
-rule-pathfollowed by a folder path if you want to load every rules file inside that folder at once.
Snort Outputs
#1. Basic Statistics
When Snort finishes running, it outputs a summary report broken down into four key areas:
- Packet Statistics: Details on the raw network packets received and decoded (e.g., total packets, UDP vs. TCP).
- Module Statistics: Activity counters (peg counts) that track specific actions performed by Snort’s internal modules (e.g., processed HTTP requests).
- File Statistics: A breakdown of analyzed files by type, size in bytes, and matching signatures.
- Summary Statistics: Overall performance metrics, including total runtime and processing speed (packets per second).
#2. Alert Outputs
To actually see detection events triggered by your rules, you must explicitly enable alerting using the -A flag. Snort supports multiple alert formats depending on your needs:
-A cmg: Displays the alert alongside the raw packet headers and the actual payload (as seen in the command line examples provided).-A u2(unified2): Logs events in a binary format intended for later analysis by other security tools.-A csv: Outputs alerts in a comma-separated format, which is highly customizable and easy to parse.
#3. Performance Monitoring
For deeper system tuning, Snort offers extra modules:
perf_monitor: Captures real-time performance data without stopping Snort, which can be sent to external monitoring tools.profiler: Tracks how much time and memory specific rules and modules are consuming, helping you optimize Snort’s performance.
Snort Rule Development
Snort Rule Development Example 1: Detecting Ursnif (Inefficiently)
1
alert tcp any any -> any any (msg:"Possible Ursnif C2 Activity"; flow:established,to_server; content:"/images/", depth 12; content:"_2F"; content:"_2B"; content:"User-Agent|3a 20|Mozilla/4.0 (compatible|3b| MSIE 8.0|3b| Windows NT"; content:!"Accept"; content:!"Cookie|3a|"; content:!"Referer|3a|"; sid:1000002; rev:1;)
The Snort rule above is designed to detect certain variations of Ursnif malware. The rule is inefficient since it misses HTTP sticky buffers.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
**$ sudo snort -c /root/snorty/etc/snort/snort.lua --daq-dir /usr/local/lib/daq -R /home/htb-student/local.rules -r /home/htb-student/pcaps/ursnif.pcap -A cmg**
--------------------------------------------------
o")~ Snort++ 3.1.64.0
--------------------------------------------------
Loading /root/snorty/etc/snort/snort.lua:
Loading snort_defaults.lua:
Finished snort_defaults.lua:
hosts
---SNIP---
host_tracker
Finished /root/snorty/etc/snort/snort.lua:
Loading file_id.rules_file:
Loading file_magic.rules:
Finished file_magic.rules:
Finished file_id.rules_file:
Loading /home/htb-student/local.rules:
Finished /home/htb-student/local.rules:
Loading rule args:
Loading /home/htb-student/local.rules:
Finished /home/htb-student/local.rules:
Finished rule args:
--------------------------------------------------
ips policies rule stats
id loaded shared enabled file
0 210 2 210 /root/snorty/etc/snort/snort.lua
--------------------------------------------------
rule counts
total rules loaded: 210
duplicate rules: 2
text rules: 210
option chains: 210
chain headers: 5
--------------------------------------------------
port rule counts
tcp udp icmp ip
any 1 0 1 0
total 1 0 1 0
--------------------------------------------------
service rule counts to-srv to-cli
file_id: 208 208
total: 208 208
--------------------------------------------------
fast pattern groups
any: 2
to_server: 1
to_client: 1
--------------------------------------------------
search engine (ac_bnfa)
instances: 3
patterns: 417
pattern chars: 2566
num states: 1836
num match states: 371
memory scale: KB
total memory: 70.9639
pattern memory: 18.792
match list memory: 27.8125
transition memory: 23.9844
appid: MaxRss diff: 3024
appid: patterns loaded: 300
--------------------------------------------------
**pcap DAQ configured to read-file.
Commencing packet processing
++ [0] /home/htb-student/pcaps/ursnif.pcap
07/21-19:27:47.161230 [**] [1:1000002:1] "Possible Ursnif C2 Activity" [**] [Priority: 0] {TCP} 10.10.10.104:49191 -> 192.42.116.41:80
00:1F:E2:10:8B:C9 -> 00:0C:29:C9:67:00 type:0x800 len:0x18C
10.10.10.104:49191 -> 192.42.116.41:80 TCP TTL:128 TOS:0x0 ID:20640 IpLen:20 DgmLen:382 DF
***AP*** Seq: 0x12E06BB Ack: 0xE061E225 Win: 0x4029 TcpLen: 20
snort.raw[342]:
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
47 45 54 20 2F 69 6D 61 67 65 73 2F 70 32 52 55 GET /ima ges/p2RU
52 68 5F 32 2F 42 6B 32 76 72 31 4F 59 52 46 31 Rh_2/Bk2 vr1OYRF1
57 47 75 35 6E 67 5F 32 46 73 66 73 2F 57 4F 57 WGu5ng_2 Fsfs/WOW
72 47 54 45 54 79 4B 2F 37 4D 7A 4D 5F 32 42 6E rGTETyK/ 7MzM_2Bn
47 5A 51 52 32 6A 73 67 50 2F 73 5F 32 42 70 53 GZQR2jsg P/s_2BpS
34 31 4B 37 41 67 2F 4F 75 4A 6A 51 66 41 61 63 41K7Ag/O uJjQfAac
32 64 2F 76 6D 46 5F 32 46 31 4B 42 50 72 4B 5F 2d/vmF_2 F1KBPrK_
32 2F 46 36 36 38 32 64 67 64 69 61 47 31 7A 75 2/F6682d gdiaG1zu
56 43 7A 37 47 68 64 2F 62 4C 37 36 57 66 35 71 VCz7Ghd/ bL76Wf5q
64 71 77 56 35 76 7A 52 2F 32 65 31 41 38 79 42 dqwV5vzR /2e1A8yB
49 64 6B 6D 49 5F 32 42 2F 6F 67 79 7A 4E 55 57 IdkmI_2B /ogyzNUW
33 47 72 2F 67 4B 42 5A 57 58 78 2E 67 69 66 20 3Gr/gKBZ WXx.gif
48 54 54 50 2F 31 2E 31 0D 0A 55 73 65 72 2D 41 HTTP/1.1 ..User-A
67 65 6E 74 3A 20 4D 6F 7A 69 6C 6C 61 2F 34 2E gent: Mo zilla/4.
30 20 28 63 6F 6D 70 61 74 69 62 6C 65 3B 20 4D 0 (compa tible; M
53 49 45 20 38 2E 30 3B 20 57 69 6E 64 6F 77 73 SIE 8.0; Windows
20 4E 54 20 36 2E 31 29 0D 0A 48 6F 73 74 3A 20 NT 6.1) ..Host:
62 6C 75 65 77 61 74 65 72 73 74 6F 6E 65 2E 72 bluewate rstone.r
75 0D 0A 43 6F 6E 6E 65 63 74 69 6F 6E 3A 20 4B u..Conne ction: K
65 65 70 2D 41 6C 69 76 65 0D 0A 43 61 63 68 65 eep-Aliv e..Cache
2D 43 6F 6E 74 72 6F 6C 3A 20 6E 6F 2D 63 61 63 -Control : no-cac
68 65 0D 0A 0D 0A he....
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
-- [0] /home/htb-student/pcaps/ursnif.pcap**
--------------------------------------------------
Packet Statistics
--------------------------------------------------
daq
pcaps: 1
received: 49
analyzed: 49
allow: 49
rx_bytes: 5925
--------------------------------------------------
codec
total: 49 (100.000%)
eth: 49 (100.000%)
ipv4: 49 (100.000%)
tcp: 16 ( 32.653%)
udp: 33 ( 67.347%)
--------------------------------------------------
Module Statistics
--------------------------------------------------
appid
packets: 49
processed_packets: 49
total_sessions: 15
service_cache_adds: 5
bytes_in_use: 760
items_in_use: 5
--------------------------------------------------
back_orifice
packets: 33
--------------------------------------------------
binder
new_flows: 12
service_changes: 2
inspects: 12
--------------------------------------------------
detection
analyzed: 49
raw_searches: 2
cooked_searches: 1
pkt_searches: 3
file_searches: 1
alerts: 1
total_alerts: 1
logged: 1
--------------------------------------------------
dns
packets: 19
requests: 12
responses: 7
--------------------------------------------------
file_id
total_files: 1
total_file_data: 304
max_concurrent_files: 1
--------------------------------------------------
http_inspect
flows: 2
scans: 9
reassembles: 9
inspections: 9
requests: 2
responses: 2
get_requests: 1
post_requests: 1
request_bodies: 1
max_concurrent_sessions: 2
total_bytes: 1603
--------------------------------------------------
port_scan
packets: 49
trackers: 7
--------------------------------------------------
search_engine
max_queued: 1
total_flushed: 2
total_inserts: 2
total_unique: 2
non_qualified_events: 1
qualified_events: 1
searched_bytes: 2192
--------------------------------------------------
stream
flows: 12
total_prunes: 7
idle_prunes_proto_timeout: 7
--------------------------------------------------
stream_tcp
sessions: 2
max: 2
created: 2
released: 2
instantiated: 2
setups: 2
restarts: 2
syn_trackers: 2
segs_queued: 4
segs_released: 4
segs_used: 4
rebuilt_packets: 9
rebuilt_bytes: 1627
syns: 2
syn_acks: 2
resets: 2
max_segs: 1
max_bytes: 981
--------------------------------------------------
stream_udp
sessions: 10
max: 10
created: 13
released: 13
timeouts: 3
total_bytes: 1964
--------------------------------------------------
wizard
tcp_scans: 2
tcp_hits: 2
udp_scans: 3
udp_misses: 3
--------------------------------------------------
Appid Statistics
--------------------------------------------------
detected apps and services
Application: Services Clients Users Payloads Misc Referred
unknown: 11 9 0 2 0 0
--------------------------------------------------
Summary Statistics
--------------------------------------------------
timing
runtime: 00:00:00
seconds: 0.039200
pkts/sec: 1250
Mbits/sec: 1
o")~ Snort exiting
Snort Rule Development Example 2: Detecting Cerber
1
alert udp $HOME_NET any -> $EXTERNAL_NET any (msg:"Possible Cerber Check-in"; dsize:9; content:"hi", depth 2, fast_pattern; pcre:"/^[af0-9]{7}$/R"; detection_filter:track by_src, count 1, seconds 60; sid:2816763; rev:4;)
The Snort rule above is designed to detect certain variations of Cerber malware.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
**$ sudo snort -c /root/snorty/etc/snort/snort.lua --daq-dir /usr/local/lib/daq -R /home/htb-student/local.rules -r /home/htb-student/pcaps/cerber.pcap -A cmg**
--------------------------------------------------
o")~ Snort++ 3.1.64.0
--------------------------------------------------
Loading /root/snorty/etc/snort/snort.lua:
Loading snort_defaults.lua:
Finished snort_defaults.lua:
output
---SNIP---
trace
Finished /root/snorty/etc/snort/snort.lua:
Loading file_id.rules_file:
Loading file_magic.rules:
Finished file_magic.rules:
Finished file_id.rules_file:
Loading /home/htb-student/local.rules:
Finished /home/htb-student/local.rules:
Loading rule args:
Loading /home/htb-student/local.rules:
Finished /home/htb-student/local.rules:
Finished rule args:
--------------------------------------------------
ips policies rule stats
id loaded shared enabled file
0 210 2 210 /root/snorty/etc/snort/snort.lua
--------------------------------------------------
rule counts
total rules loaded: 210
duplicate rules: 2
text rules: 210
option chains: 210
chain headers: 5
--------------------------------------------------
port rule counts
tcp udp icmp ip
any 0 1 1 0
total 0 1 1 0
--------------------------------------------------
service rule counts to-srv to-cli
file_id: 208 208
total: 208 208
--------------------------------------------------
fast pattern groups
any: 2
to_server: 1
to_client: 1
--------------------------------------------------
search engine (ac_bnfa)
instances: 3
patterns: 417
pattern chars: 2511
num states: 1781
num match states: 371
memory scale: KB
total memory: 69.8359
pattern memory: 18.7383
match list memory: 27.3828
transition memory: 23.3398
appid: MaxRss diff: 3024
appid: patterns loaded: 300
--------------------------------------------------
pcap DAQ configured to read-file.
Commencing packet processing
++ [0] /home/htb-student/pcaps/cerber.pcap
07/22-02:17:56.486663 [**] [1:2816763:4] "Possible Cerber Check-in" [**] [Priority: 0] {UDP} 10.0.2.15:1046 -> 31.184.234.1:6892
08:00:27:A9:8C:97 -> 52:54:00:12:35:02 type:0x800 len:0x3C
10.0.2.15:1046 -> 31.184.234.1:6892 UDP TTL:128 TOS:0x0 ID:83 IpLen:20 DgmLen:37
Len: 9
snort.raw[9]:
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
68 69 30 30 37 32 38 39 35 hi007289 5
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
07/22-02:17:56.486795 [**] [1:2816763:4] "Possible Cerber Check-in" [**] [Priority: 0] {UDP} 10.0.2.15:1046 -> 31.184.234.2:6892
08:00:27:A9:8C:97 -> 52:54:00:12:35:02 type:0x800 len:0x3C
10.0.2.15:1046 -> 31.184.234.2:6892 UDP TTL:128 TOS:0x0 ID:84 IpLen:20 DgmLen:37
Len: 9
snort.raw[9]:
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
68 69 30 30 37 32 38 39 35 hi007289 5
---SNIP---
-- [0] /home/htb-student/pcaps/cerber.pcap
--------------------------------------------------
Packet Statistics
--------------------------------------------------
daq
pcaps: 1
received: 1035
analyzed: 1035
allow: 1035
rx_bytes: 65672
--------------------------------------------------
codec
total: 1035 (100.000%)
eth: 1035 (100.000%)
ipv4: 1035 (100.000%)
tcp: 9 ( 0.870%)
udp: 1026 ( 99.130%)
--------------------------------------------------
Module Statistics
--------------------------------------------------
appid
packets: 1035
processed_packets: 1035
total_sessions: 1026
service_cache_adds: 514
bytes_in_use: 78128
items_in_use: 514
--------------------------------------------------
back_orifice
packets: 514
--------------------------------------------------
binder
new_flows: 1026
service_changes: 1
inspects: 1026
--------------------------------------------------
detection
analyzed: 1035
raw_searches: 1026
pkt_searches: 1026
file_searches: 1
alerts: 511
total_alerts: 511
logged: 511
--------------------------------------------------
dns
packets: 2
requests: 1
responses: 1
--------------------------------------------------
file_id
total_files: 1
total_file_data: 164
max_concurrent_files: 1
--------------------------------------------------
http_inspect
flows: 1
scans: 5
reassembles: 5
inspections: 5
requests: 1
responses: 1
get_requests: 1
max_concurrent_sessions: 1
total_bytes: 462
--------------------------------------------------
pcre
pcre_rules: 2
pcre_native: 2
--------------------------------------------------
port_scan
packets: 1035
trackers: 516
--------------------------------------------------
search_engine
max_queued: 1
total_flushed: 512
total_inserts: 512
total_unique: 512
non_qualified_events: 1
qualified_events: 511
searched_bytes: 17146
--------------------------------------------------
stream
flows: 1026
--------------------------------------------------
stream_tcp
sessions: 1
max: 1
created: 1
released: 1
instantiated: 1
setups: 1
restarts: 1
syn_trackers: 1
segs_queued: 2
segs_released: 2
segs_used: 2
rebuilt_packets: 5
rebuilt_bytes: 474
syns: 1
syn_acks: 1
fins: 1
max_segs: 1
max_bytes: 435
--------------------------------------------------
stream_udp
sessions: 1025
max: 1025
created: 1025
released: 1025
total_bytes: 16982
--------------------------------------------------
wizard
tcp_scans: 1
tcp_hits: 1
udp_scans: 1024
udp_misses: 1024
--------------------------------------------------
Appid Statistics
--------------------------------------------------
detected apps and services
Application: Services Clients Users Payloads Misc Referred
unknown: 2 1 0 1 0 0
--------------------------------------------------
Summary Statistics
--------------------------------------------------
timing
runtime: 00:01:11
seconds: 71.153373
pkts/sec: 15
o")~ Snort exiting
Snort Rule Development Example 3: Detecting Patchwork
1
alert http $HOME_NET any -> $EXTERNAL_NET any (msg:"OISF TROJAN Targeted AutoIt FileStealer/Downloader CnC Beacon"; flow:established,to_server; http_method; content:"POST"; http_uri; content:".php?profile="; http_client_body; content:"ddager=", depth 7; http_client_body; content:"&r1=", distance 0; http_header; content:!"Accept"; http_header; content:!"Referer|3a|"; sid:10000006; rev:1;)
The Snort rule above is designed to detect certain variations of malware used by the Patchwork APT.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
**$ sudo snort -c /root/snorty/etc/snort/snort.lua --daq-dir /usr/local/lib/daq -R /home/htb-student/local.rules -r /home/htb-student/pcaps/patchwork.pcap -A cmg**
--------------------------------------------------
o")~ Snort++ 3.1.64.0
--------------------------------------------------
Loading /root/snorty/etc/snort/snort.lua:
Loading snort_defaults.lua:
Finished snort_defaults.lua:
output
---SNIP---
trace
Finished /root/snorty/etc/snort/snort.lua:
Loading file_id.rules_file:
Loading file_magic.rules:
Finished file_magic.rules:
Finished file_id.rules_file:
Loading /home/htb-student/local.rules:
Finished /home/htb-student/local.rules:
Loading rule args:
Loading /home/htb-student/local.rules:
Finished /home/htb-student/local.rules:
Finished rule args:
--------------------------------------------------
ips policies rule stats
id loaded shared enabled file
0 210 2 210 /root/snorty/etc/snort/snort.lua
--------------------------------------------------
rule counts
total rules loaded: 210
duplicate rules: 2
text rules: 210
option chains: 210
chain headers: 5
--------------------------------------------------
port rule counts
tcp udp icmp ip
any 0 0 1 0
total 0 0 1 0
--------------------------------------------------
service rule counts to-srv to-cli
file_id: 208 208
http: 1 0
http2: 1 0
http3: 1 0
total: 211 208
--------------------------------------------------
fast pattern groups
to_server: 4
to_client: 1
--------------------------------------------------
search engine (ac_bnfa)
instances: 5
patterns: 419
pattern chars: 2550
num states: 1820
num match states: 373
memory scale: KB
total memory: 73.0088
pattern memory: 18.8525
match list memory: 27.75
transition memory: 25.7812
appid: MaxRss diff: 2964
appid: patterns loaded: 300
--------------------------------------------------
**pcap DAQ configured to read-file.
Commencing packet processing
++ [0] /home/htb-student/pcaps/patchwork.pcap
06/01-19:24:43.339294 [**] [1:10000006:1] "OISF TROJAN Targeted AutoIt FileStealer/Downloader CnC Beacon" [**] [Priority: 0] {TCP} 192.168.1.37:49176 -> 212.129.13.110:8
0
http_inspect.http_method[4]:
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
50 4F 53 54 POST
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
http_inspect.http_version[8]:
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
48 54 54 50 2F 31 2E 31 HTTP/1.1
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
http_inspect.http_uri[37]:
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
2F 64 72 6F 70 70 65 72 2E 70 68 70 3F 70 72 6F /dropper .php?pro
66 69 6C 65 3D 63 6D 56 6B 63 30 42 43 55 45 46 file=cmV kc0BCUEF
4A 54 67 3D 3D JTg==
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
http_inspect.http_header[167]:
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
43 6F 6E 6E 65 63 74 69 6F 6E 3A 20 4B 65 65 70 Connecti on: Keep
2D 41 6C 69 76 65 0D 0A 43 6F 6E 74 65 6E 74 2D -Alive.. Content-
54 79 70 65 3A 20 61 70 70 6C 69 63 61 74 69 6F Type: ap plicatio
6E 2F 78 2D 77 77 77 2D 66 6F 72 6D 2D 75 72 6C n/x-www- form-url
65 6E 63 6F 64 65 64 0D 0A 55 73 65 72 2D 41 67 encoded. .User-Ag
65 6E 74 3A 20 4D 6F 7A 69 6C 6C 61 2F 35 2E 30 ent: Moz illa/5.0
20 46 69 72 65 66 6F 78 20 28 4C 69 6B 65 20 53 Firefox (Like S
61 66 61 72 69 2F 57 65 62 6B 69 74 29 0D 0A 43 afari/We bkit)..C
6F 6E 74 65 6E 74 2D 4C 65 6E 67 74 68 3A 20 36 ontent-L ength: 6
34 0D 0A 48 6F 73 74 3A 20 32 31 32 2E 31 32 39 4..Host: 212.129
2E 31 33 2E 31 31 30 .13.110
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
http_inspect.http_client_body[64]:
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
64 64 61 67 65 72 3D 30 26 72 31 3D 56 30 6C 4F ddager=0 &r1=V0lO
58 7A 63 3D 26 72 32 3D 57 44 59 30 26 72 33 3D Xzc=&r2= WDY0&r3=
4D 53 34 78 26 72 34 3D 4D 41 3D 3D 26 72 35 3D MS4x&r4= MA==&r5=
49 43 41 3D 26 72 36 3D 56 48 4A 31 5A 51 3D 3D ICA=&r6= VHJ1ZQ==
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
06/01-19:25:09.059391 [**] [1:10000006:1] "OISF TROJAN Targeted AutoIt FileStealer/Downloader CnC Beacon" [**] [Priority: 0] {TCP} 192.168.1.37:49186 -> 212.129.13.110:8
0
---SNIP---
-- [0] /home/htb-student/pcaps/patchwork.pcap**
--------------------------------------------------
Packet Statistics
--------------------------------------------------
daq
pcaps: 1
received: 4868
analyzed: 4868
allow: 4155
whitelist: 713
rx_bytes: 3561155
--------------------------------------------------
codec
total: 4868 (100.000%)
discards: 1 ( 0.021%)
eth: 4868 (100.000%)
ipv4: 4868 (100.000%)
tcp: 4834 ( 99.302%)
udp: 33 ( 0.678%)
--------------------------------------------------
Module Statistics
--------------------------------------------------
appid
packets: 4867
processed_packets: 4867
total_sessions: 11
service_cache_adds: 6
bytes_in_use: 912
items_in_use: 6
--------------------------------------------------
back_orifice
packets: 33
--------------------------------------------------
binder
raw_packets: 1
new_flows: 10
service_changes: 7
inspects: 11
--------------------------------------------------
dce_smb
sessions: 1
packets: 17
ignored_bytes: 287
max_outstanding_requests: 1
max_concurrent_sessions: 1
total_smb1_sessions: 1
--------------------------------------------------
detection
analyzed: 4868
pdu_searches: 257
file_searches: 514
alerts: 257
total_alerts: 257
logged: 257
--------------------------------------------------
file_id
total_files: 514
total_file_data: 390466
max_concurrent_files: 1
--------------------------------------------------
http_inspect
flows: 4
scans: 2822
reassembles: 2822
inspections: 1542
requests: 257
responses: 257
post_requests: 257
request_bodies: 257
max_concurrent_sessions: 1
total_bytes: 2081981
--------------------------------------------------
normalizer
test_tcp_trim_win: 8
--------------------------------------------------
port_scan
packets: 4867
trackers: 8
--------------------------------------------------
search_engine
max_queued: 1
total_flushed: 513
total_inserts: 513
total_unique: 513
non_qualified_events: 256
qualified_events: 257
searched_bytes: 399719
--------------------------------------------------
ssl
packets: 71
decoded: 71
client_hello: 2
server_hello: 2
certificate: 2
server_done: 6
client_key_exchange: 2
change_cipher: 4
client_application: 3
server_application: 56
alert: 1
unrecognized_records: 6
handshakes_completed: 1
sessions_ignored: 1
max_concurrent_sessions: 1
--------------------------------------------------
stream
flows: 10
total_prunes: 3
idle_prunes_proto_timeout: 3
--------------------------------------------------
stream_tcp
sessions: 7
max: 7
created: 7
released: 7
instantiated: 7
setups: 7
restarts: 7
invalid_seq_num: 8
syn_trackers: 7
segs_queued: 2735
segs_released: 2735
segs_used: 2734
rebuilt_packets: 1631
rebuilt_bytes: 2981239
gaps: 6
syns: 8
syn_acks: 7
resets: 1
fins: 10
max_segs: 15
max_bytes: 20520
--------------------------------------------------
stream_udp
sessions: 3
max: 3
created: 4
released: 4
timeouts: 1
total_bytes: 2359
--------------------------------------------------
wizard
tcp_scans: 9
tcp_hits: 7
udp_scans: 3
udp_misses: 3
--------------------------------------------------
Appid Statistics
--------------------------------------------------
detected apps and services
Application: Services Clients Users Payloads Misc Referred
unknown: 9 4 0 6 0 0
--------------------------------------------------
Summary Statistics
--------------------------------------------------
timing
runtime: 00:01:21
seconds: 81.152785
pkts/sec: 60
o")~ Snort exiting
Snort Rule Development Example 4: Detecting Patchwork (SSL)
1
alert tcp $EXTERNAL_NET any -> $HOME_NET any (msg:"Patchwork SSL Cert Detected"; flow:established,from_server; content:"|55 04 03|"; content:"|08|toigetgf", distance 1, within 9; classtype:trojan-activity; sid:10000008; rev:1;)
The Snort rule above is designed to detect certain variations of malware used by the Patchwork APT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
**$ sudo snort -c /root/snorty/etc/snort/snort.lua --daq-dir /usr/local/lib/daq -R /home/htb-student/local.rules -r /home/htb-student/pcaps/patchwork.pcap -A cmg**
--------------------------------------------------
o")~ Snort++ 3.1.64.0
--------------------------------------------------
Loading /root/snorty/etc/snort/snort.lua:
Loading snort_defaults.lua:
Finished snort_defaults.lua:
ips
--SNIP---
trace
active
Finished /root/snorty/etc/snort/snort.lua:
Loading file_id.rules_file:
Loading file_magic.rules:
Finished file_magic.rules:
Finished file_id.rules_file:
Loading /home/htb-student/local.rules:
Finished /home/htb-student/local.rules:
Loading rule args:
Loading /home/htb-student/local.rules:
Finished /home/htb-student/local.rules:
Finished rule args:
--------------------------------------------------
ips policies rule stats
id loaded shared enabled file
0 210 2 210 /root/snorty/etc/snort/snort.lua
--------------------------------------------------
rule counts
total rules loaded: 210
duplicate rules: 2
text rules: 210
option chains: 210
chain headers: 5
--------------------------------------------------
port rule counts
tcp udp icmp ip
any 1 0 1 0
total 1 0 1 0
--------------------------------------------------
service rule counts to-srv to-cli
file_id: 208 208
total: 208 208
--------------------------------------------------
fast pattern groups
any: 2
to_server: 1
to_client: 1
--------------------------------------------------
search engine (ac_bnfa)
instances: 3
patterns: 417
pattern chars: 2518
num states: 1788
num match states: 371
memory scale: KB
total memory: 69.9795
pattern memory: 18.7451
match list memory: 27.4375
transition memory: 23.4219
appid: MaxRss diff: 3084
appid: patterns loaded: 300
--------------------------------------------------
**pcap DAQ configured to read-file.
Commencing packet processing
++ [0] /home/htb-student/pcaps/patchwork.pcap
06/01-19:25:29.876240 [**] [1:10000008:1] "Patchwork SSL Cert Detected" [**] [Classification: A Network Trojan was detected] [Priority: 1] {TCP} 45.43.192.172:8443 -> 192.168.1.37:49211
ssl.stream_tcp[807]:
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
16 03 03 00 51 02 00 00 4D 03 03 74 19 1E 0B 50 ....Q... M..t...P
F2 80 7F 3F 81 1C 07 CF 58 0B A0 48 B0 F7 A7 D4 ...?.... X..H....
8B 08 53 2D 10 62 F9 23 F0 CD 76 20 A3 17 4D A2 ..S-.b.# ..v ..M.
35 58 EC 8B 4A F2 74 6D 72 7F CC 80 45 E8 1E 73 5X..J.tm r...E..s
2E 22 18 99 75 FB D1 FF 0E 97 C8 04 00 3C 00 00 ."..u... .....<..
05 FF 01 00 01 00 16 03 03 02 C3 0B 00 02 BF 00 ........ ........
02 BC 00 02 B9 30 82 02 B5 30 82 01 9D A0 03 02 .....0.. .0......
01 02 02 08 44 0E 87 29 65 41 6D 2A 30 0D 06 09 ....D..) eAm*0...
2A 86 48 86 F7 0D 01 01 0B 05 00 30 13 31 11 30 *.H..... ...0.1.0
0F 06 03 55 04 03 0C 08 74 6F 69 67 65 74 67 66 ...U.... toigetgf
30 1E 17 0D 31 34 31 31 31 38 30 36 30 38 33 38 0...1411 18060838
5A 17 0D 32 34 31 31 31 35 30 36 30 38 33 38 5A Z..24111 5060838Z
30 13 31 11 30 0F 06 03 55 04 03 0C 08 74 6F 69 0.1.0... U....toi
67 65 74 67 66 30 82 01 22 30 0D 06 09 2A 86 48 getgf0.. "0...*.H
86 F7 0D 01 01 01 05 00 03 82 01 0F 00 30 82 01 ........ .....0..
0A 02 82 01 01 00 C6 B9 1B 97 5C 6E DA 23 4C 02 ........ ..\n.#L.
EC A6 A8 09 56 FA 85 5E 35 75 A8 BB 63 B5 81 30 ....V..^ 5u..c..0
90 91 45 D7 19 36 0B 20 DF 70 37 0E 91 05 FB 86 ..E..6. .p7.....
22 E8 56 3D A5 89 BA 13 01 60 DF 43 A6 F0 05 7B ".V=.... .`.C...{
5A 04 7F 53 14 80 C1 64 EA 9C 09 98 A2 B8 99 EA Z..S...d ........
91 26 52 81 62 D3 BB CE A2 4E E7 BB 97 C9 19 D2 .&R.b... .N......
EF 61 8A A5 50 9A D7 6B 9F 9D 54 7B AE E2 6F 53 .a..P..k ..T{..oS
BB 7A B4 D2 93 06 73 96 CD 04 19 55 D3 7A DA 34 .z....s. ...U.z.4
8F 05 2D 2E 98 7F 6C 9E 0B C8 41 A2 49 BA FB CC ..-...l. ..A.I...
A4 20 BD 8A E5 18 27 88 BB 87 F9 F6 F3 56 8F 73 . ....'. .....V.s
D6 BA 92 29 F9 F0 A6 AB F5 FD 5F E0 92 C6 96 2D ...).... .._....-
41 80 FA 0B 4C C9 9B AE 2D 69 F7 9D B5 4B 14 81 A...L... -i...K..
AD F8 71 6F 2B A8 59 66 6E FD B5 8B 3B 14 09 F7 ..qo+.Yf n...;...
B8 FC 20 EF 7D A0 D5 40 D6 66 BB 65 B6 FC 92 3A .. .}..@ .f.e...:
71 F5 BA 5B F1 07 A5 FD E3 11 F2 A9 51 6C 16 8F q..[.... ....Ql..
C8 72 B7 A0 D7 26 43 3A 18 7B F8 7B 38 72 01 37 .r...&C: .{.{8r.7
4F 42 28 42 2F 01 02 03 01 00 01 A3 0D 30 0B 30 OB(B/... .....0.0
09 06 03 55 1D 13 04 02 30 00 30 0D 06 09 2A 86 ...U.... 0.0...*.
48 86 F7 0D 01 01 0B 05 00 03 82 01 01 00 2D 0E H....... ......-.
CC D5 50 AB DF 20 37 BB 71 10 31 C5 1F 17 EC F9 ..P.. 7. q.1.....
D7 20 1A 19 39 F4 DE D8 BA C1 A3 F5 57 E0 E0 6B . ..9... ....W..k
DC 6F E1 1F 6B 07 98 FB 38 1A 0A 77 BD B4 0A 94 .o..k... 8..w....
01 45 95 0C 09 F1 43 D5 7D 57 E7 D6 E7 74 98 6C .E....C. }W...t.l
4F D0 46 81 F2 9D 5A 29 1E BD 7F 03 5B 64 B3 98 O.F...Z) ....[d..
D4 52 B0 E1 CE 11 62 68 31 1D CC 0F DD B6 AA 5C .R....bh 1......\
44 D0 44 18 9E 3D AE 30 C7 10 C6 97 F6 C1 C9 D7 D.D..=.0 ........
11 13 44 AA B4 C9 2D 0C AC 2B AD 9A CB 7B 5D 51 ..D...-. .+...{]Q
3F 45 C6 2E 99 CF 71 F6 66 9A 09 28 44 28 34 3B ?E....q. f..(D(4;
EC 0B A6 F4 E3 5F FE 7E 30 59 DC 3D 4E 33 22 11 ....._.~ 0Y.=N3".
BA CA 8A 4B 41 5D 97 3E CD BB 3C DD 28 37 12 47 ...KA].> ..<.(7.G
E0 BE AC 3B 13 EC 59 A0 E3 1A CE 28 B2 11 5D 3B ...;..Y. ...(..];
AC AD CF 32 F5 EA CB B2 92 20 BC 5C 3C 4C B9 43 ...2.... . .\<L.C
5A BC 1B 2F E3 F3 DF DC 04 DB 24 6A 73 13 EA E5 Z../.... ..$js...
32 45 6A F6 D9 CC 66 9C 80 99 3D EC D9 2D 13 9A 2Ej...f. ..=..-..
9A 6F 90 69 47 95 B6 46 D8 F2 E8 EF CC CA 16 03 .o.iG..F ........
03 00 04 0E 00 00 00 .......
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
06/01-19:25:44.259156 [**] [1:10000008:1] "Patchwork SSL Cert Detected" [**] [Classification: A Network Trojan was detected] [Priority: 1] {TCP} 45.43.192.172:8443 -> 192.168.1.37:49219
ssl.stream_tcp[807]:
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
16 03 01 00 51 02 00 00 4D 03 01 BA 21 1C 95 C6 ....Q... M...!...
8A 83 F3 C8 31 16 EF 25 32 C4 63 7E 82 B0 7D D0 ....1..% 2.c~..}.
01 EF 6C 7B DC A3 CD 53 97 18 62 20 C6 FE 9D B0 ..l{...S ..b ....
B0 F4 9B 9A 6E 1D 6B 74 64 4D E4 CC 30 2E 05 B8 ....n.kt dM..0...
30 1A 34 D0 30 94 5B FA AB 64 27 09 00 2F 00 00 0.4.0.[. .d'../..
05 FF 01 00 01 00 16 03 01 02 C3 0B 00 02 BF 00 ........ ........
02 BC 00 02 B9 30 82 02 B5 30 82 01 9D A0 03 02 .....0.. .0......
01 02 02 08 44 0E 87 29 65 41 6D 2A 30 0D 06 09 ....D..) eAm*0...
2A 86 48 86 F7 0D 01 01 0B 05 00 30 13 31 11 30 *.H..... ...0.1.0
0F 06 03 55 04 03 0C 08 74 6F 69 67 65 74 67 66 ...U.... toigetgf
30 1E 17 0D 31 34 31 31 31 38 30 36 30 38 33 38 0...1411 18060838
5A 17 0D 32 34 31 31 31 35 30 36 30 38 33 38 5A Z..24111 5060838Z
30 13 31 11 30 0F 06 03 55 04 03 0C 08 74 6F 69 0.1.0... U....toi
67 65 74 67 66 30 82 01 22 30 0D 06 09 2A 86 48 getgf0.. "0...*.H
86 F7 0D 01 01 01 05 00 03 82 01 0F 00 30 82 01 ........ .....0..
0A 02 82 01 01 00 C6 B9 1B 97 5C 6E DA 23 4C 02 ........ ..\n.#L.
EC A6 A8 09 56 FA 85 5E 35 75 A8 BB 63 B5 81 30 ....V..^ 5u..c..0
90 91 45 D7 19 36 0B 20 DF 70 37 0E 91 05 FB 86 ..E..6. .p7.....
22 E8 56 3D A5 89 BA 13 01 60 DF 43 A6 F0 05 7B ".V=.... .`.C...{
5A 04 7F 53 14 80 C1 64 EA 9C 09 98 A2 B8 99 EA Z..S...d ........
91 26 52 81 62 D3 BB CE A2 4E E7 BB 97 C9 19 D2 .&R.b... .N......
EF 61 8A A5 50 9A D7 6B 9F 9D 54 7B AE E2 6F 53 .a..P..k ..T{..oS
BB 7A B4 D2 93 06 73 96 CD 04 19 55 D3 7A DA 34 .z....s. ...U.z.4
8F 05 2D 2E 98 7F 6C 9E 0B C8 41 A2 49 BA FB CC ..-...l. ..A.I...
A4 20 BD 8A E5 18 27 88 BB 87 F9 F6 F3 56 8F 73 . ....'. .....V.s
D6 BA 92 29 F9 F0 A6 AB F5 FD 5F E0 92 C6 96 2D ...).... .._....-
41 80 FA 0B 4C C9 9B AE 2D 69 F7 9D B5 4B 14 81 A...L... -i...K..
AD F8 71 6F 2B A8 59 66 6E FD B5 8B 3B 14 09 F7 ..qo+.Yf n...;...
B8 FC 20 EF 7D A0 D5 40 D6 66 BB 65 B6 FC 92 3A .. .}..@ .f.e...:
71 F5 BA 5B F1 07 A5 FD E3 11 F2 A9 51 6C 16 8F q..[.... ....Ql..
C8 72 B7 A0 D7 26 43 3A 18 7B F8 7B 38 72 01 37 .r...&C: .{.{8r.7
4F 42 28 42 2F 01 02 03 01 00 01 A3 0D 30 0B 30 OB(B/... .....0.0
09 06 03 55 1D 13 04 02 30 00 30 0D 06 09 2A 86 ...U.... 0.0...*.
48 86 F7 0D 01 01 0B 05 00 03 82 01 01 00 2D 0E H....... ......-.
CC D5 50 AB DF 20 37 BB 71 10 31 C5 1F 17 EC F9 ..P.. 7. q.1.....
D7 20 1A 19 39 F4 DE D8 BA C1 A3 F5 57 E0 E0 6B . ..9... ....W..k
DC 6F E1 1F 6B 07 98 FB 38 1A 0A 77 BD B4 0A 94 .o..k... 8..w....
01 45 95 0C 09 F1 43 D5 7D 57 E7 D6 E7 74 98 6C .E....C. }W...t.l
4F D0 46 81 F2 9D 5A 29 1E BD 7F 03 5B 64 B3 98 O.F...Z) ....[d..
D4 52 B0 E1 CE 11 62 68 31 1D CC 0F DD B6 AA 5C .R....bh 1......\
44 D0 44 18 9E 3D AE 30 C7 10 C6 97 F6 C1 C9 D7 D.D..=.0 ........
11 13 44 AA B4 C9 2D 0C AC 2B AD 9A CB 7B 5D 51 ..D...-. .+...{]Q
3F 45 C6 2E 99 CF 71 F6 66 9A 09 28 44 28 34 3B ?E....q. f..(D(4;
EC 0B A6 F4 E3 5F FE 7E 30 59 DC 3D 4E 33 22 11 ....._.~ 0Y.=N3".
BA CA 8A 4B 41 5D 97 3E CD BB 3C DD 28 37 12 47 ...KA].> ..<.(7.G
E0 BE AC 3B 13 EC 59 A0 E3 1A CE 28 B2 11 5D 3B ...;..Y. ...(..];
AC AD CF 32 F5 EA CB B2 92 20 BC 5C 3C 4C B9 43 ...2.... . .\<L.C
5A BC 1B 2F E3 F3 DF DC 04 DB 24 6A 73 13 EA E5 Z../.... ..$js...
32 45 6A F6 D9 CC 66 9C 80 99 3D EC D9 2D 13 9A 2Ej...f. ..=..-..
9A 6F 90 69 47 95 B6 46 D8 F2 E8 EF CC CA 16 03 .o.iG..F ........
01 00 04 0E 00 00 00 .......
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
-- [0] /home/htb-student/pcaps/patchwork.pcap**
--------------------------------------------------
Packet Statistics
--------------------------------------------------
daq
pcaps: 1
received: 4868
analyzed: 4868
allow: 4155
whitelist: 713
rx_bytes: 3561155
--------------------------------------------------
codec
total: 4868 (100.000%)
discards: 1 ( 0.021%)
eth: 4868 (100.000%)
ipv4: 4868 (100.000%)
tcp: 4834 ( 99.302%)
udp: 33 ( 0.678%)
--------------------------------------------------
Module Statistics
--------------------------------------------------
appid
packets: 4867
processed_packets: 4867
total_sessions: 11
service_cache_adds: 6
bytes_in_use: 912
items_in_use: 6
--------------------------------------------------
back_orifice
packets: 33
--------------------------------------------------
binder
raw_packets: 1
new_flows: 10
service_changes: 7
inspects: 11
--------------------------------------------------
dce_smb
sessions: 1
packets: 17
ignored_bytes: 287
max_outstanding_requests: 1
max_concurrent_sessions: 1
total_smb1_sessions: 1
--------------------------------------------------
detection
analyzed: 4868
raw_searches: 21
cooked_searches: 619
pkt_searches: 640
file_searches: 514
alerts: 2
total_alerts: 2
logged: 2
--------------------------------------------------
file_id
total_files: 514
total_file_data: 390466
max_concurrent_files: 1
--------------------------------------------------
http_inspect
flows: 4
scans: 2822
reassembles: 2822
inspections: 1542
requests: 257
responses: 257
post_requests: 257
request_bodies: 257
max_concurrent_sessions: 1
total_bytes: 2081981
--------------------------------------------------
normalizer
test_tcp_trim_win: 8
--------------------------------------------------
port_scan
packets: 4867
trackers: 8
--------------------------------------------------
search_engine
max_queued: 1
total_flushed: 258
total_inserts: 258
total_unique: 258
non_qualified_events: 256
qualified_events: 2
searched_bytes: 3260955
--------------------------------------------------
ssl
packets: 71
decoded: 71
client_hello: 2
server_hello: 2
certificate: 2
server_done: 6
client_key_exchange: 2
change_cipher: 4
client_application: 3
server_application: 56
alert: 1
unrecognized_records: 6
handshakes_completed: 1
sessions_ignored: 1
max_concurrent_sessions: 1
--------------------------------------------------
stream
flows: 10
total_prunes: 3
idle_prunes_proto_timeout: 3
--------------------------------------------------
stream_tcp
sessions: 7
max: 7
created: 7
released: 7
instantiated: 7
setups: 7
restarts: 7
invalid_seq_num: 8
syn_trackers: 7
segs_queued: 2735
segs_released: 2735
segs_used: 2734
rebuilt_packets: 1631
rebuilt_bytes: 2981239
gaps: 6
syns: 8
syn_acks: 7
resets: 1
fins: 10
max_segs: 15
max_bytes: 20520
--------------------------------------------------
stream_udp
sessions: 3
max: 3
created: 4
released: 4
timeouts: 1
total_bytes: 2359
--------------------------------------------------
wizard
tcp_scans: 9
tcp_hits: 7
udp_scans: 3
udp_misses: 3
--------------------------------------------------
Appid Statistics
--------------------------------------------------
detected apps and services
Application: Services Clients Users Payloads Misc Referred
unknown: 9 4 0 6 0 0
--------------------------------------------------
Summary Statistics
--------------------------------------------------
timing
runtime: 00:00:00
seconds: 0.078293
pkts/sec: 62177
Mbits/sec: 347
o")~ Snort exiting
Zeek
Zeek Fundamentals
Zeek is an open-source network analysis tool. It is also a tool for troubleshooting network issues and performing measurements. ‘Zeek’ sounds quite similar to ‘Seek’. Initially, this software was named ‘Bro’. Zeek uses a Scripting Language instead of the rules used by Suricata and Snort.
Zeek’s Operation Modes
Zeek operates in the following modes:
- Fully passive traffic analysis
- libpcap interface for packet capture
- Real-time and offline (e.g., PCAP-based) analysis
- Cluster support for large-scale deployments
Zeek’s Architecture
Zeek’s architecture consists of two phases.
First, the core (Event Engine) is responsible for receiving all raw network data and translating it into objective event reports, merely recording what is happening on the network without making any judgments or evaluations.
These event reports are then automatically queued and forwarded to the second component, the Script Interpreter; here, the system automatically applies security rules pre-programmed by administrators (Zeek scripts) to deeply analyze the context, assess the threat level of each event, and make appropriate decisions to alert or block.
Most of Zeek’s events are defined in .bif files located in the /scripts/base/bif/plugins/ directory. [Ref]
Zeek Logs
Among the diverse array of logs Zeek produces, some familiar ones include:
conn.log: This log provides details about IP, TCP, UDP, and ICMP connections.dns.log: Here, you’ll find the details of DNS queries and responses.http.log: This log captures the details of HTTP requests and responses.ftp.log: Details of FTP requests and responses are logged here.smtp.log: This log covers SMTP transactions, such as sender and recipient details.
Zeek, in its standard configuration, applies gzip compression to log files every hour. The older logs are then transferred into a directory named in the YYYY-MM-DD format. When dealing with these compressed logs, alternative tools like gzcat for printing logs or zgrep for searching within logs can come in handy.
Zeek also provides a specialized tool known as zeek-cut for handling log files.
Intrusion Detect ith Zeek
Intrusion Detection With Zeek Example 1: Detecting Beaconing Malware
Beaconing is a process by which malware communicates with its command and control (C2) server to receive instructions or exfiltrate data.
By analyzing connection logs (conn.log), we can look for patterns in outbound traffic.
1
$ /usr/local/zeek/bin/zeek -C -r /home/htb-student/pcaps/psempire.pcap
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
$ cat conn.log
#separator \x09
#set_separator ,
#empty_field (empty)
#unset_field -
#path conn
#open 2023-07-16-12-15-40
#fields ts uid id.orig_h id.orig_p id.resp_h id.resp_p proto service duration orig_bytes resp_bytes conn_state local_orig local_resp missed_bytes history o_pkts orig_ip_bytes resp_pkts resp_ip_bytes tunnel_parents
#types time string addr port addr port enum string interval count count string bool bool count string count count count count set[string]
1511269439.125289 CuQYC98rE69BBb7jb 192.168.56.14 50436 51.15.197.127 80 tcp http 2.186789 204 5557 SF - - 0 ShADadfF 5 416 8 5889 -
1511269436.547667 CTc2Qc2kleCjVaU0V1 fe80::ec23:e8b7:91cb:974d 61431 ff02::1:3 5355 udp dns 0.094916 44 0 S0 - - 0 D 2 140 0 0
1511269436.548234 Cd4aTbH02m0iB9XS9 192.168.56.14 64755 224.0.0.252 5355 udp dns 0.094893 44 0 S0 - - 0 D 2 100 0 0 -
1511269445.266039 CjKEcE3tUWBHhYM93d 192.168.56.14 50437 51.15.197.127 80 tcp http 0.214611 683 482 SF - - 0 ShADadfF 6 935 6 734 -
1511269446.190550 CNah6o4OZz5Sr5wGq1 192.168.56.14 50438 51.15.197.127 80 tcp http 0.150132 436 39502 SF - - 0 ShADadfF 11 888 33 40834 -
1511269451.891317 CA6iaN3UgCDI0Sy9x4 192.168.56.14 50439 51.15.197.127 80 tcp http 0.098543 199 399 SF - - 0 ShADadfF 5 411 5 611 -
1511269457.130160 ChcRft1mTccVo2yQfa 192.168.56.14 50440 51.15.197.127 80 tcp http 0.119445 208 399 SF - - 0 ShADadfF 5 420 5 611 -
1511269462.359918 Clja4s40wWlk8bkAW4 192.168.56.14 50441 51.15.197.127 80 tcp http 0.129297 199 399 SF - - 0 ShADadfF 5 411 5 611 -
1511269467.593242 CyE3Th1j6AunL5E3Pl 192.168.56.14 50442 51.15.197.127 80 tcp http 0.181411 204 399 SF - - 0 ShADadfF 5 416 5 611 -
1511269472.881671 CwuY7B34I442zmY0hf 192.168.56.14 50443 51.15.197.127 80 tcp http 0.121359 199 399 SF - - 0 ShADadfF 5 411 5 611 -
1511269478.120597 CVPMlj3atDGkCy1xyk 192.168.56.14 50444 51.15.197.127 80 tcp http 0.121619 208 399 SF - - 0 ShADadfF 5 420 5 611 -
1511269483.366011 Ckn8aZn8c67nuAE19 192.168.56.14 50445 51.15.197.127 80 tcp http 0.122851 208 399 SF - - 0 ShADadfF 5 420 5 611 -
1511269488.593094 CfeRTH1oejGg6gA5Li 192.168.56.14 50446 51.15.197.127 80 tcp http 0.121150 199 399 SF - - 0 ShADadfF 5 411 5 611 -
1511269493.824701 CWmiwT4QR8u71xp0h 192.168.56.14 50447 51.15.197.127 80 tcp http 0.126577 204 399 SF - - 0 ShADadfF 5 416 5 611 -
1511269499.116879 C113hs4IWwgOGe0hxf 192.168.56.14 50448 51.15.197.127 80 tcp http 0.122739 199 399 SF - - 0 ShADadfF 5 411 5 611 -
1511269504.350011 CHI1AHQLm8ybrQ5ti 192.168.56.14 50449 51.15.197.127 80 tcp http 0.117855 204 399 SF - - 0 ShADadfF 5 416 5 611 -
1511269509.574454 CIpoyx4Sx3XEyiKbjh 192.168.56.14 50450 51.15.197.127 80 tcp http 0.156094 204 399 SF - - 0 ShADadfF 5 416 5 611 -
1511269514.842106 CDLbbm2nnHbr3RO9F9 192.168.56.14 50451 51.15.197.127 80 tcp http 0.100951 208 399 SF - - 0 ShADadfF 5 420 5 611 -
1511269520.114079 CipCM33FvSh7hWVHnc 192.168.56.14 50452 51.15.197.127 80 tcp http 0.135885 204 399 SF - - 0 ShADadfF 5 416 5 611 -
1511269525.359633 CwMhAI3giczB1gTeR2 192.168.56.14 50453 51.15.197.127 80 tcp http 0.105601 204 399 SF - - 0 ShADadfF 5 416 5 611 -
1511269530.579134 CowTCpq1Lon2Rp5T2 192.168.56.14 50454 51.15.197.127 80 tcp http 0.115933 199 399 SF - - 0 ShADadfF 5 411 5 611 -
1511269535.801940 CpYwvc23LmuhPsuuMc 192.168.56.14 50455 51.15.197.127 80 tcp http 0.106631 204 399 SF - - 0 ShADadfF 5 416 5 611 -
1511269541.044084 Cnvsqj2QcNcWSLBqH7 192.168.56.14 50456 51.15.197.127 80 tcp http 0.121668 199 399 SF - - 0 ShADadfF 5 411 5 611 -
1511269546.278570 CgbzqfgMFulKOP1xe 192.168.56.14 50457 51.15.197.127 80 tcp http 0.121052 204 399 SF - - 0 ShADadfF 5 416 5 611 -
1511269551.506084 CUlFD949mmSfKATJpc 192.168.56.14 50458 51.15.197.127 80 tcp http 0.096607 204 399 SF - - 0 ShADadfF 5 416 5 611 -
1511269556.712264 Cbc1No4FSSjiRQFoNc 192.168.56.14 50459 51.15.197.127 80 tcp http 0.137852 199 399 SF - - 0 ShADadfF 5 411 5 611 -
1511269561.963394 CYwON91Js8ssOY4503 192.168.56.14 50460 51.15.197.127 80 tcp http 0.099626 199 399 SF - - 0 ShADadfF 5 411 5 611 -
1511269567.178812 Cryspb4A5KOHbIWDY 192.168.56.14 50461 51.15.197.127 80 tcp http 0.154607 199 399 SF - - 0 ShADadfF 5 411 5 611 -
1511269572.442802 CRpXje3yCwJlayfhnj 192.168.56.14 50462 51.15.197.127 80 tcp http 0.104125 208 399 SF - - 0 ShADadfF 5 420 5 611 -
1511269577.652288 CkudtR34qPv7fMdMJ6 192.168.56.14 50463 51.15.197.127 80 tcp http 0.099126 199 399 SF - - 0 ShADadfF 5 411 5 611 -
1511269582.860772 Cmmlvl4K523e8SjCN6 192.168.56.14 50464 51.15.197.127 80 tcp http 0.164748 199 399 SF - - 0 ShADadfF 5 411 5 611 -
1511269588.129256 CPaFSTAJAIqVHwzPb 192.168.56.14 50465 51.15.197.127 80 tcp http 0.109133 208 399 SF - - 0 ShADadfF 5 420 5 611 -
1511269593.348262 CVz6Zn4A42L2kupGIg 192.168.56.14 50466 51.15.197.127 80 tcp http 0.120536 208 399 SF - - 0 ShADadfF 5 420 5 611 -
1511269598.574770 CHfjXhviIEXv6plH9 192.168.56.14 50467 51.15.197.127 80 tcp http 0.121539 199 399 SF - - 0 ShADadfF 5 411 5 611 -
1511269603.841610 CuLnP82MDaJG5EGhXf 192.168.56.14 50468 51.15.197.127 80 tcp http 0.100802 204 399 SF - - 0 ShADadfF 5 416 5 611 -
1511269609.055326 Cx6Ucw4sZSdBcmcIC4 192.168.56.14 50469 51.15.197.127 80 tcp http 0.119905 199 399 SF - - 0 ShADadfF 5 411 5 611 -
1511269614.297715 C1Fmoa1eqrmEFyfoZe 192.168.56.14 50470 51.15.197.127 80 tcp http 0.101035 204 399 SF - - 0 ShADadfF 5 416 5 611 -
1511269619.505350 C6d8iu18n9TSiDnsl2 192.168.56.14 50471 51.15.197.127 80 tcp http 0.099847 204 399 SF - - 0 ShADadfF 5 416 5 611 -
1511269624.718056 CmMGUH37oYmbgIBhlg 192.168.56.14 50472 51.15.197.127 80 tcp http 0.105994 204 399 SF - - 0 ShADadfF 5 416 5 611 -
1511269629.930502 CzI2GE1TrzEeBO1cTi 192.168.56.14 50473 51.15.197.127 80 tcp http 0.101906 208 399 SF - - 0 ShADadfF 5 420 5 611 -
1511269635.148168 CjyA8G3Z8uvE4tJVF9 192.168.56.14 50474 51.15.197.127 80 tcp http 0.119757 204 399 SF - - 0 ShADadfF 5 416 5 611 -
1511269640.373506 CYyb4A2VWcRgAYvWag 192.168.56.14 50475 51.15.197.127 80 tcp http 0.169011 199 287 SF - - 0 ShADadfF 5 411 5 499 -
1511269641.021152 CrYW4H0ghoFV71hA 192.168.56.14 50476 51.15.197.127 80 tcp http 0.455491 438 399 SF - - 0 ShADadfF 6 690 6 651 -
1511269646.585189 CbUYsK3SLFNyu6kw1 192.168.56.14 50477 51.15.197.127 80 tcp http 0.101870 204 399 SF - - 0 ShADadfF 5 416 5 611 -
1511269651.808258 C9p1Kbt661hlXmlXj 192.168.56.14 50478 51.15.197.127 80 tcp http 0.102826 204 399 SF - - 0 ShADadfF 5 416 5 611 -
1511269657.016924 CvxhCA2BroRtMx3fn8 192.168.56.14 50479 51.15.197.127 80 tcp http 0.115444 199 399 SF - - 0 ShADadfF 5 411 5 611 -
1511269662.249219 C9uc9Y3j6g4RlJCQE7 192.168.56.14 50480 51.15.197.127 80 tcp http 0.101768 199 399 SF - - 0 ShADadfF 5 411 5 611 -
#close 2023-07-16-12-15-40
If we look carefully enough we will notice connections being made to 51.15.197.127:80 approximately every 5 seconds, which is indicative of a malware beaconing.
The psempire.pcap file, which is located in the /home/htb-student/pcaps directory includes traffic related to PowerShell Empire. PowerShell Empire indeed beacons every 5 seconds in its default configuration.
Intrusion Detection With Zeek Example 2: Detecting DNS Exfiltration
Zeek is also useful when we suspect data exfiltration. Data exfiltration can be difficult to detect as it often mimics normal network traffic. However, with Zeek, we can analyze our network traffic at a deeper level.
Zeek’s files.log can be used to identify large amounts of data being sent to an unusual external destination, or over non-standard ports, which may suggest data exfiltration. The http.log and dns.log can also be utilized to identify potential covert exfiltration channels, such as DNS tunneling or HTTP POST requests to a suspicious domain.
1
$ /usr/local/zeek/bin/zeek -C -r /home/htb-student/pcaps/dnsexfil.pcapng
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
$ cat dns.log
#separator \x09
#set_separator ,
#empty_field (empty)
#unset_field -
#path dns
#open 2023-07-16-12-28-33
#fields ts uid id.orig_h id.orig_p id.resp_h id.resp_p proto trans_id rtt query qclass qclass_name qtype
qtype_name rcode rcode_name AA TC RD RA Z answers TTLs rejected
#types time string addr port addr port enum count interval string count string count string count string bool boolbool bool count vector[string] vector[interval] bool
1630061362.889769 CogoDL3T2prsNPkXhe 192.168.38.104 65463 192.168.38.102 53 udp 53252 0.043481 safebrowsing.google.com 1 C_INTERNET 1 A 0 NOERROR F F T T 0 sb.l.google.com,142.250.186.142 18994.000000,300.000000 F
1630061369.739218 CTlobe1QTqUhc1CzS3 192.168.38.104 56692 192.168.38.102 53 udp 32394 0.145503 456c54f2.blue.letsgohunt.onli
ne 1 C_INTERNET 1 A 0 NOERROR F F T T 0 0.0.0.0 0.000000 F
1630061429.886391 CQPUxP37HbTlSOdLF6 192.168.38.104 49611 192.168.38.102 53 udp 64402 0.142414 456c54f2.blue.letsgohunt.onli
ne 1 C_INTERNET 1 A 0 NOERROR F F T T 0 0.0.0.0 1.000000 F
1630061469.956241 C0JPXx3z0WuxTE9Tbg 192.168.38.103 51888 192.168.38.102 53 udp 34124 - wpad.windomain.local 1 C_INT
ERNET 1 A 3 NXDOMAIN F F T F 0 - - F
1630061490.031632 CIMbmp4Wgt287yiERh 192.168.38.104 52584 192.168.38.102 53 udp 57411 0.143350 456c54f2.blue.letsgohunt.onli
ne 1 C_INTERNET 1 A 0 NOERROR F F T T 0 0.0.0.241 1.000000 F
1630061490.175977 CLwvTc2MIadaIReXQd 192.168.38.104 61385 192.168.38.102 53 udp 31811 0.139366 www.180.0c9a5671.456c54f2.blu
e.letsgohunt.online 1 C_INTERNET 1 A 0 NOERROR F F T T 0 0.0.0.0 1.000000 F
1630061490.316414 CqbrTf39jEUB1hHd37 192.168.38.104 60333 192.168.38.102 53 udp 41259 0.137040 www.1204192da26d109d4.1c9a567
1.456c54f2.blue.letsgohunt.online 1 C_INTERNET 1 A 0 NOERROR F F T T 0 0.0.0.0 0.000000 F
1630061490.454478 CQAWsr3oTT6nmG7Hp4 192.168.38.104 53312 192.168.38.102 53 udp 28300 0.143220 www.11a1855b98d2b71c3.2c9a567
1.456c54f2.blue.letsgohunt.online 1 C_INTERNET 1 A 0 NOERROR F F T T 0 0.0.0.0 1.000000 F
1630061490.598615 CF17ZJ2eHvUosEjVC 192.168.38.104 64078 192.168.38.102 53 udp 33505 0.142812 www.122aa166873fda051.3c9a567
1.456c54f2.blue.letsgohunt.online 1 C_INTERNET 1 A 0 NOERROR F F T T 0 0.0.0.0 1.000000 F
1630061490.742694 CS0QSmWZe9bUEpNwf 192.168.38.104 54465 192.168.38.102 53 udp 5391 0.144439 www.1d91f26756080c945.4c9a567
1.456c54f2.blue.letsgohunt.online 1 C_INTERNET 1 A 0 NOERROR F F T T 0 0.0.0.0 1.000000 F
---SNIP---
Let’s focus on the requested (sub)domains by leveraging zeek-cut
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
$ cat dns.log | /usr/local/zeek/bin/zeek-cut query | cut -d . -f1-7
safebrowsing.google.com
456c54f2.blue.letsgohunt.online
456c54f2.blue.letsgohunt.online
wpad.windomain.local
456c54f2.blue.letsgohunt.online
www.180.0c9a5671.456c54f2.blue.letsgohunt.online
www.1204192da26d109d4.1c9a5671.456c54f2.blue.letsgohunt.online
www.11a1855b98d2b71c3.2c9a5671.456c54f2.blue.letsgohunt.online
www.122aa166873fda051.3c9a5671.456c54f2.blue.letsgohunt.online
www.1d91f26756080c945.4c9a5671.456c54f2.blue.letsgohunt.online
www.1302c3663cc8a94f9.5c9a5671.456c54f2.blue.letsgohunt.online
www.1adef2977e4b3653f.6c9a5671.456c54f2.blue.letsgohunt.online
www.111edd479a7512c9c.7c9a5671.456c54f2.blue.letsgohunt.online
www.11483ec078e733131.8c9a5671.456c54f2.blue.letsgohunt.online
www.1f5e94740470d0157.9c9a5671.456c54f2.blue.letsgohunt.online
www.114cbea690a81874a.ac9a5671.456c54f2.blue.letsgohunt.online
www.10db7634eade0b736.bc9a5671.456c54f2.blue.letsgohunt.online
www.1d5aee37e1c25ba02.cc9a5671.456c54f2.blue.letsgohunt.online
www.1d4f517cdcf8807c2.dc9a5671.456c54f2.blue.letsgohunt.online
www.14d71477201813b75.ec9a5671.456c54f2.blue.letsgohunt.online
www.1e3723505f4ebd907.fc9a5671.456c54f2.blue.letsgohunt.online
www.1aa645b2d.10c9a5671.456c54f2.blue.letsgohunt.online
www.1cf2bfe54.11c9a5671.456c54f2.blue.letsgohunt.online
cdn.0600553f0.456c54f2.blue.letsgohunt.online
cdn.1600553f0.456c54f2.blue.letsgohunt.online
cdn.2600553f0.456c54f2.blue.letsgohunt.online
cdn.3600553f0.456c54f2.blue.letsgohunt.online
cdn.4600553f0.456c54f2.blue.letsgohunt.online
cdn.5600553f0.456c54f2.blue.letsgohunt.online
cdn.6600553f0.456c54f2.blue.letsgohunt.online
cdn.7600553f0.456c54f2.blue.letsgohunt.online
cdn.8600553f0.456c54f2.blue.letsgohunt.online
cdn.9600553f0.456c54f2.blue.letsgohunt.online
cdn.a600553f0.456c54f2.blue.letsgohunt.online
cdn.b600553f0.456c54f2.blue.letsgohunt.online
cdn.c600553f0.456c54f2.blue.letsgohunt.online
cdn.d600553f0.456c54f2.blue.letsgohunt.online
cdn.e600553f0.456c54f2.blue.letsgohunt.online
cdn.f600553f0.456c54f2.blue.letsgohunt.online
cdn.10600553f0.456c54f2.blue.letsgohunt.online
post.140.0346c53ab.456c54f2.blue.letsgohunt.online
post.10bb13b53.1346c53ab.456c54f2.blue.letsgohunt.online
post.104fb3984.2346c53ab.456c54f2.blue.letsgohunt.online
post.1bdfe1d1e.3346c53ab.456c54f2.blue.letsgohunt.online
post.19f3acfa6.4346c53ab.456c54f2.blue.letsgohunt.online
post.18daa4c69.5346c53ab.456c54f2.blue.letsgohunt.online
post.107f7e44c.6346c53ab.456c54f2.blue.letsgohunt.online
post.1ab508fac.7346c53ab.456c54f2.blue.letsgohunt.online
post.18ae33d21.8346c53ab.456c54f2.blue.letsgohunt.online
post.11edd6ce8.9346c53ab.456c54f2.blue.letsgohunt.online
post.1979ee0a5.a346c53ab.456c54f2.blue.letsgohunt.online
post.1cc9dd9e9.b346c53ab.456c54f2.blue.letsgohunt.online
post.17b865d4d.c346c53ab.456c54f2.blue.letsgohunt.online
post.1212da6de.d346c53ab.456c54f2.blue.letsgohunt.online
post.177a1fc1a.e346c53ab.456c54f2.blue.letsgohunt.online
post.19e7d023b.f346c53ab.456c54f2.blue.letsgohunt.online
post.1100b6576.10346c53ab.456c54f2.blue.letsgohunt.online
www.1f5e94740470d0157.9c9a5671.456c54f2.blue.letsgohunt.online
sgtqrgcask.windomain.local
zvfepxzuazrlds.windomain.local
kohaqbopxlq.windomain.local
www.1cf2bfe54.11c9a5671.456c54f2.blue.letsgohunt.online
sgtqrgcask.windomain.local
zvfepxzuazrlds.windomain.local
kohaqbopxlq.windomain.local
456c54f2.blue.letsgohunt.online
wpad.windomain.local
456c54f2.blue.letsgohunt.online
456c54f2.blue.letsgohunt.online
cdn.013821c34.456c54f2.blue.letsgohunt.online
cdn.113821c34.456c54f2.blue.letsgohunt.online
cdn.213821c34.456c54f2.blue.letsgohunt.online
cdn.313821c34.456c54f2.blue.letsgohunt.online
cdn.313821c34.456c54f2.blue.letsgohunt.online
cdn.413821c34.456c54f2.blue.letsgohunt.online
cdn.513821c34.456c54f2.blue.letsgohunt.online
cdn.613821c34.456c54f2.blue.letsgohunt.online
cdn.713821c34.456c54f2.blue.letsgohunt.online
cdn.813821c34.456c54f2.blue.letsgohunt.online
cdn.913821c34.456c54f2.blue.letsgohunt.online
cdn.a13821c34.456c54f2.blue.letsgohunt.online
cdn.b13821c34.456c54f2.blue.letsgohunt.online
cdn.c13821c34.456c54f2.blue.letsgohunt.online
456c54f2.blue.letsgohunt.online
456c54f2.blue.letsgohunt.online
456c54f2.blue.letsgohunt.online
456c54f2.blue.letsgohunt.online
456c54f2.blue.letsgohunt.online
v10.vortex-win.data.microsoft.com
456c54f2.blue.letsgohunt.online
456c54f2.blue.letsgohunt.online
456c54f2.blue.letsgohunt.online
---SNIP---
post.1460.0467121d5.456c54f2.blue.letsgohunt.online
post.11a878166.1467121d5.456c54f2.blue.letsgohunt.online
post.12c1c89cf.2467121d5.456c54f2.blue.letsgohunt.online
post.1bdcdb1fb.3467121d5.456c54f2.blue.letsgohunt.online
post.1a6c6349c.4467121d5.456c54f2.blue.letsgohunt.online
post.14f3d0809.5467121d5.456c54f2.blue.letsgohunt.online
post.172d6c024.6467121d5.456c54f2.blue.letsgohunt.online
post.162ef0f19.7467121d5.456c54f2.blue.letsgohunt.online
post.15b5a7d2f.8467121d5.456c54f2.blue.letsgohunt.online
post.1286fe5b0.9467121d5.456c54f2.blue.letsgohunt.online
post.1fe01b96d.a467121d5.456c54f2.blue.letsgohunt.online
post.1ed530f2f.b467121d5.456c54f2.blue.letsgohunt.online
post.1c8d291d4.c467121d5.456c54f2.blue.letsgohunt.online
post.153699937.d467121d5.456c54f2.blue.letsgohunt.online
post.158c0e1f4.e467121d5.456c54f2.blue.letsgohunt.online
post.139cc5d29.f467121d5.456c54f2.blue.letsgohunt.online
post.1e189482f.10467121d5.456c54f2.blue.letsgohunt.online
post.189c8f742.11467121d5.456c54f2.blue.letsgohunt.online
post.1f6a4e146.12467121d5.456c54f2.blue.letsgohunt.online
post.16ec2a953.13467121d5.456c54f2.blue.letsgohunt.online
post.170c0d25b.14467121d5.456c54f2.blue.letsgohunt.online
post.113540390.15467121d5.456c54f2.blue.letsgohunt.online
post.1ca92006c.16467121d5.456c54f2.blue.letsgohunt.online
post.19092e499.17467121d5.456c54f2.blue.letsgohunt.online
post.1767e291d.18467121d5.456c54f2.blue.letsgohunt.online
post.15bb03130.19467121d5.456c54f2.blue.letsgohunt.online
post.180fe71ad.1a467121d5.456c54f2.blue.letsgohunt.online
post.196a0026d.1b467121d5.456c54f2.blue.letsgohunt.online
post.11a2ec7e4.1c467121d5.456c54f2.blue.letsgohunt.online
post.179b5c2cb.1d467121d5.456c54f2.blue.letsgohunt.online
post.1065838ef.1e467121d5.456c54f2.blue.letsgohunt.online
post.10113b20d.1f467121d5.456c54f2.blue.letsgohunt.online
post.1d78debc8.20467121d5.456c54f2.blue.letsgohunt.online
post.155a1b219.21467121d5.456c54f2.blue.letsgohunt.online
post.1b7ccee56.22467121d5.456c54f2.blue.letsgohunt.online
post.13cbcd295.23467121d5.456c54f2.blue.letsgohunt.online
post.1adefc484.24467121d5.456c54f2.blue.letsgohunt.online
post.1cf6a99a5.25467121d5.456c54f2.blue.letsgohunt.online
post.1cc391010.26467121d5.456c54f2.blue.letsgohunt.online
post.18f94bc21.27467121d5.456c54f2.blue.letsgohunt.online
post.1bfb7033c.28467121d5.456c54f2.blue.letsgohunt.online
post.18e36fa94.29467121d5.456c54f2.blue.letsgohunt.online
post.1d141f783.2a467121d5.456c54f2.blue.letsgohunt.online
post.16a96aac3.2b467121d5.456c54f2.blue.letsgohunt.online
post.1f30c5795.2c467121d5.456c54f2.blue.letsgohunt.online
post.196711e3e.2d467121d5.456c54f2.blue.letsgohunt.online
post.1297f6300.2e467121d5.456c54f2.blue.letsgohunt.online
post.16e18e7dd.2f467121d5.456c54f2.blue.letsgohunt.online
post.16a187dd4.30467121d5.456c54f2.blue.letsgohunt.online
post.1b164078f.31467121d5.456c54f2.blue.letsgohunt.online
post.15e30ba0e.32467121d5.456c54f2.blue.letsgohunt.online
post.1829f67d4.33467121d5.456c54f2.blue.letsgohunt.online
post.17675f25b.34467121d5.456c54f2.blue.letsgohunt.online
post.135fc439b.35467121d5.456c54f2.blue.letsgohunt.online
post.13c0803cb.36467121d5.456c54f2.blue.letsgohunt.online
post.1dbcb3f1b.37467121d5.456c54f2.blue.letsgohunt.online
---SNIP---
Upon close inspection, it becomes evident that the domain letsgohunt.online possesses a significant number of subdomains, similar to cloud providers. However, it’s worth noting that interactions with dozens or even hundreds of subdomains are generally not considered typical behavior.
Intrusion Detection With Zeek Example 3: Detecting TLS Exfiltration
Let’s now go over an example of detecting data exfiltration over TLS.
1
$ /usr/local/zeek/bin/zeek -C -r /home/htb-student/pcaps/tlsexfil.pcap
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
$ cat conn.log
#separator \x09
#set_separator ,
#empty_field (empty)
#unset_field -
#path conn
#open 2023-07-16-12-48-53
#fields ts uid id.orig_h id.orig_p id.resp_h id.resp_p proto service duration orig_bytes resp_bytes conn_
state local_orig local_resp missed_bytes history orig_pkts orig_ip_bytes resp_pkts resp_ip_bytes tunnel_parents
#types time string addr port addr port enum string interval count count string bool bool count string count count
count count set[string]
1628867750.258715 CdU24818il2WrB5gx9 fe80::4996:7026:833f:a154 546 ff02::1:2 547 udp - - - - S0 -- 0 D 1 152 0 0 -
1628867814.448052 CD4narIi677g3tdG7 10.0.10.100 54754 192.168.151.181 443 tcp ssl 0.097507 646 1452 SF - -0 ShADadfFR 15 1258 13 1984 -
1628867874.573558 CCXldM1iyIuyhNiBe2 10.0.10.100 53905 192.168.151.181 443 tcp ssl 0.021315 636 410 SF - -0 ShADadfF 9 1008 9 782 -
1628867877.614701 Cg9e9K1AuI0k4cLZd9 10.0.10.100 53906 192.168.151.181 443 tcp ssl 0.010393 636 316 SF - -0 ShADadfFR 10 1048 9 688 -
1628867883.643943 CA91RA1mwdLcwUJbEi 10.0.10.100 53931 192.168.151.181 443 tcp ssl 0.007428 636 394 SF - -0 ShADadfF 10 1048 9 766 -
1628867880.629877 CpYf8hQlyAnrcCcm3 10.0.10.100 53907 192.168.151.181 443 tcp ssl 6.044923 636 316 SF - -0 ShADadfFR 11 1088 9 688 -
1628867883.655898 CGYvJ3saMB5dphXmd 10.0.10.100 53932 192.168.151.181 443 tcp ssl 6.032257 602 301 SF - -0 ShADadfFR 11 1054 9 673 -
1628867889.688558 CM7Uex4iNNNdDuXQI9 10.0.10.100 53935 192.168.151.181 443 tcp ssl 0.058204 636 761668 SF - -0 ShADadfFR 251 10688 530 782880 -
1628867890.907805 CA797aXtJqeOtKwq2 10.0.10.100 53936 192.168.151.181 443 tcp ssl 0.007216 6489 301 SF - -0 ShADadfFR 15 7101 13 833 -
1628867886.675238 CMSija4yWhe79PvBRa 10.0.10.100 53933 192.168.151.181 443 tcp ssl 10.263047 636 316 SF - -0 ShADadfFR 11 1088 9 688 -
1628867893.923082 C08H2y2GdUfnpjolb8 10.0.10.100 53937 192.168.151.181 443 tcp ssl 6.030951 636 316 SF - -0 ShADadfFR 11 1088 9 688 -
1628867896.938711 CkM3724NFKT3yly1ba 10.0.10.100 53938 192.168.151.181 443 tcp ssl 6.030904 636 316 SF - -0 ShADadfFR 11 1088 9 688 -
1628867902.969959 CPT4hK31bvSaURqWH3 10.0.10.100 53940 192.168.151.181 443 tcp ssl 0.007301 636 316 SF - -0 ShADadfFR 10 1048 9 688 -
1628867899.954481 Ccz3Dq202Zm8LFrzWl 10.0.10.100 53939 192.168.151.181 443 tcp ssl 9.046324 636 316 SF - -0 ShADadfFR 11 1088 9 688 -
1628867909.001101 C19Vw03nPSvVEqus6a 10.0.10.100 53943 192.168.151.181 443 tcp ssl 0.006624 636 316 SF - -0 ShADadfFR 10 1048 9 688 -
1628867912.016361 CNhVAiOpkgAh1R8sc 10.0.10.100 53944 192.168.151.181 443 tcp ssl 0.006317 636 316 SF - -0 ShADadfFR 11 1088 10 728 -
1628867813.135021 C6tGC34oP3F21KORAa 10.0.10.100 54753 192.168.151.181 80 tcp http 100.022854 71 223946 SF - -0 ShADadfFr 61 2523 158 230278 -
1628867915.031768 CFt2xn0eYzCSJ8Tm3 10.0.10.100 53945 192.168.151.181 443 tcp ssl 0.006337 636 316 SF - -0 ShADadfFR 10 1048 9 688 -
1628867905.985349 CVQgKN1WiXXgZIEy16 10.0.10.100 53941 192.168.151.181 443 tcp ssl 15.077758 636 316 SF - -0 ShADadfFR 11 1088 9 688 -
1628867921.063426 CPAfjN16aDWelGoQa5 10.0.10.100 53947 192.168.151.181 443 tcp ssl 0.006175 636 316 SF - -0 ShADadfFR 10 1048 9 688 -
1628867924.078851 C0p8fW3d4pYpG44Jph 10.0.10.100 53948 192.168.151.181 443 tcp ssl 0.006009 636 394 SF - -0 ShADadfF 10 1048 9 766 -
1628867924.087301 CEw1Dx2GLoPquSbp4a 10.0.10.100 53949 192.168.151.181 443 tcp ssl 0.006812 635 301 SF - -0 ShADadfFR 11 1087 9 673 -
1628867918.047485 CgnReehqaJvQprHy 10.0.10.100 53946 192.168.151.181 443 tcp ssl 6.375404 636 316 SF - -0 ShADadfFR 11 1088 9 688 -
1628867927.110654 CkC7Zh1hj0i8MwNLJ4 10.0.10.100 53951 192.168.151.181 443 tcp ssl 0.012658 636 94934 SF - -0 ShADadfF 40 2248 73 97866 -
1628867931.281818 CaKMQO2fekZSAErjP 10.0.10.100 53952 192.168.151.181 443 tcp ssl 0.005757 636 316 SF - -0 ShADadfFR 10 1048 9 688 -
1628867931.288461 CjcDcAwMHgOaoxGu6 10.0.10.100 53953 192.168.151.181 443 tcp ssl 0.005921 635 301 SF - -0 ShADadfFR 11 1087 9 673 -
1628867934.297398 CiEfhC2odzlHli49Q2 10.0.10.100 53954 192.168.151.181 443 tcp ssl 0.006077 636 316 SF - -0 ShADadfFR 10 1048 9 688 -
1628867937.313352 CfW6Lb4WRMgJUS7Rn8 10.0.10.100 53955 192.168.151.181 443 tcp ssl 3.022240 636 316 SF - -0 ShADadfFR 11 1088 9 688 -
1628867940.328753 CerXJm10bIAxgVVqz5 10.0.10.100 53956 192.168.151.181 443 tcp ssl 3.015564 636 316 SF - -0 ShADadfFR 11 1088 9 688 -
1628867940.336125 CsAfy6jGo3uLtDAA5 10.0.10.100 53957 192.168.151.181 443 tcp ssl 6.023655 635 301 SF - -0 ShADadfFR 11 1087 9 673 -
1628867946.360157 CFtJB71l1uIyBiy4bl 10.0.10.100 53959 192.168.151.181 443 tcp ssl 0.006221 636 316 SF - -0 ShADadfFR 11 1088 9 688 -
1628867949.375797 CXmWZc344kNYukfAZa 10.0.10.100 53961 192.168.151.181 443 tcp ssl 0.005946 636 316 SF - -0 ShADadfFR 10 1048 9 688 -
1628867943.344713 C0tEUWB7VYkFzPRVk 10.0.10.100 53958 192.168.151.181 443 tcp ssl 12.062123 636 316 SF - -0 ShADadfFR 11 1088 9 688 -
1628867955.407292 C4BsWIqN2EivsCq78 10.0.10.100 60677 192.168.151.181 443 tcp ssl 0.006345 636 316 SF - -0 ShADadfFR 10 1048 9 688 -
1628867952.391209 CQ16vl3UTaFE6CAuP1 10.0.10.100 53962 192.168.151.181 443 tcp ssl 6.037476 636 316 SF - -0 ShADadfFR 11 1088 9 688 -
1628867958.429096 CCgRqF34Zw0NJKdtc7 10.0.10.100 61579 192.168.151.181 443 tcp ssl 0.005344 602 301 SF - -0 ShADadfFR 10 1014 9 673 -
1628867959.112081 CrCSPSO195LUPz6t2 10.0.10.100 61682 10.0.10.1 6000 tcp - 3.013302 0 0 S0 - -0 S 3 156 0 0 -
1628867959.112205 CCuH0D1XNvS6KOMR4j 10.0.10.100 61683 10.0.10.1 5999 tcp - 3.013185 0 0 S0 - -0 S 3 156 0 0 -
1628867959.112399 CpYbPQ1Ea1arKY1GQk 10.0.10.100 61684 10.0.10.1 5998 tcp - 3.012992 0 0 S0 - -0 S 3 156 0 0 -
1628867959.112573 CpHaau3yHk4ZtqPtS2 10.0.10.100 61685 10.0.10.1 5997 tcp - 3.012820 0 0 S0 - -0 S 3 156 0 0 -
1628867959.112748 CISSiF3c92oAe9BJPd 10.0.10.100 61686 10.0.10.1 5996 tcp - 3.012646 0 0 S0 - -0 S 3 156 0 0 -
---SNIP---
The output is a bit tricky to analyze. Let’s narrow things down by using zeek-cut
1
2
3
4
$ cat conn.log | /usr/local/zeek/bin/zeek-cut id.orig_h id.resp_h orig_bytes | sort | grep -v -e '^$' | grep -v '-' | datamash -g 1,2 sum 3 | sort -k 3 -rn | head -10
10.0.10.100 192.168.151.181 270775912
10.0.10.100 10.0.10.1 0
Intrusion Detection With Zeek Example 4: Detecting PsExec
PsExec, a part of the Sysinternals Suite, is frequently used for remote administration within Active Directory environments.
To illustrate a typical attack sequence, let’s consider this: an attacker transfers the binary file PSEXESVC.exe to a target machine using the ADMIN$ share, a special shared folder used in Windows networks, via the SMB protocol. Following this, the attacker remotely launches this file as a temporary service by utilizing the IPC$ share, another special shared resource that enables Inter-Process Communication.
We can identify SMB transfers and the typical use of PsExec using Zeek’s smb_files.log, dce_rpc.log, and smb_mapping.log:
1
$ /usr/local/zeek/bin/zeek -C -r /home/htb-student/pcaps/psexec_add_user.pcap
1
2
3
4
5
6
7
8
9
10
11
12
13
$ cat smb_files.log
#separator \x09
#set_separator ,
#empty_field (empty)
#unset_field -
#path smb_files
#open 2023-07-16-17-39-49
#fields ts uid id.orig_h id.orig_p id.resp_h id.resp_p fuid action path name size prev_name times.modified times.accessed times.created times.changed
#types time string addr port addr port string enum string string count string time time time time
1507567479.268789 CksrR04Pziy7EPYOT6 192.168.10.31 49282 192.168.10.10 445 - SMB::FILE_OPEN \\\\dc1\\ADMIN$ PSEXESVC.exe 0 - 1507567479.122923 1507567479.122923 1507567479.122923 1507567479.122923
1507567500.496785 CgPykN2qCki9kzhoh6 192.168.10.31 49285 192.168.10.10 445 - SMB::FILE_OPEN \\\\dc1\\ADMIN$ PSEXESVC.exe 145568 - 1507567479.122923 1507567479.122923 1507567479.122923 1507567479.122923
1507567500.496785 CgPykN2qCki9kzhoh6 192.168.10.31 49285 192.168.10.10 445 - SMB::FILE_DELETE \\\\dc1\\ADMIN$ PSEXESVC.exe 145568- 1507567479.122923 1507567479.122923 1507567479.122923 1507567479.122923
#close 2023-07-16-17-39-49
1
2
3
4
5
6
7
8
9
10
11
12
13
$ cat smb_files.log
#separator \x09
#set_separator ,
#empty_field (empty)
#unset_field -
#path smb_files
#open 2023-07-16-17-39-49
#fields ts uid id.orig_h id.orig_p id.resp_h id.resp_p fuid action path name size prev_name times.modified times.accessed times.created times.changed
#types time string addr port addr port string enum string string count string time time time time
1507567479.268789 CksrR04Pziy7EPYOT6 192.168.10.31 49282 192.168.10.10 445 - SMB::FILE_OPEN \\\\dc1\\ADMIN$ PSEXESVC.exe 0 - 1507567479.122923 1507567479.122923 1507567479.122923 1507567479.122923
1507567500.496785 CgPykN2qCki9kzhoh6 192.168.10.31 49285 192.168.10.10 445 - SMB::FILE_OPEN \\\\dc1\\ADMIN$ PSEXESVC.exe 145568 - 1507567479.122923 1507567479.122923 1507567479.122923 1507567479.122923
1507567500.496785 CgPykN2qCki9kzhoh6 192.168.10.31 49285 192.168.10.10 445 - SMB::FILE_DELETE \\\\dc1\\ADMIN$ PSEXESVC.exe 145568- 1507567479.122923 1507567479.122923 1507567479.122923 1507567479.122923
#close 2023-07-16-17-39-49
1
2
3
4
5
6
7
8
9
10
11
12
13
$ cat smb_mapping.log
#separator \x09
#set_separator ,
#empty_field (empty)
#unset_field -
#path smb_mapping
#open 2023-07-16-17-39-49
#fields ts uid id.orig_h id.orig_p id.resp_h id.resp_p path service native_file_system share_type
#types time string addr port addr port string string string string
1507567479.268407 CksrR04Pziy7EPYOT6 192.168.10.31 49282 192.168.10.10 445 \\\\dc1\\ADMIN$ - - DISK
1507567500.280462 CgPykN2qCki9kzhoh6 192.168.10.31 49285 192.168.10.10 445 \\\\dc1\\IPC$ - - PIPE
1507567500.496371 CgPykN2qCki9kzhoh6 192.168.10.31 49285 192.168.10.10 445 \\\\dc1\\ADMIN$ - - DISK
#close 2023-07-16-17-39-49
The temporary service creation is apparent in the last two logs above.
This post is licensed under CC BY 4.0 by the author.
